Fatigue-Relieving Electric Fabric Foot Massager

The XB-8086 is a compact electric fabric foot massager developed around two functions that are commonly required in cold-weather wellness products: foot warming and mechanical kneading.

The product uses a separate upper fabric section and lower ABS massage base. The plush cover provides a soft contact surface around the feet, while the massage base contains the motor-driven kneading mechanism. This construction keeps the product relatively compact while allowing the fabric section to be removed for cleaning or replaced for different product configurations.

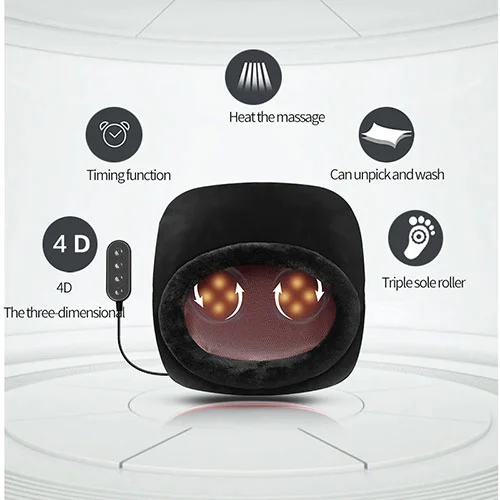

The massage mechanism uses dual rotating kneading wheels to create a pressure-based massage movement. The 18W motor is paired with a high-torque reduction gearbox to maintain the required mechanical output while keeping the rated power relatively low.

A heating element provides approximately 40°C warming, allowing heat and mechanical massage to be used together. The operating controls support forward and reverse rotation, three intensity levels and two massage modes.

With a net weight of approximately 1.5 kg and a product size of 30 × 30 × 19 cm, the XB-8086 is suitable for product lines where portability, compact packaging and low operating power are important considerations.

Massage Structure and Heating

The massage base uses dual rotating kneading wheels driven by a 24V DC motor. The rotating mechanism is designed to reproduce a repeated kneading and pressure movement rather than simple vibration.

Although the rated motor power is only 18W, the drive system uses a high-torque reduction gearbox to provide the mechanical force required for the massage mechanism. Users can select from 3 intensity levels and 2 massage modes, with forward and reverse rotation available through the control system.

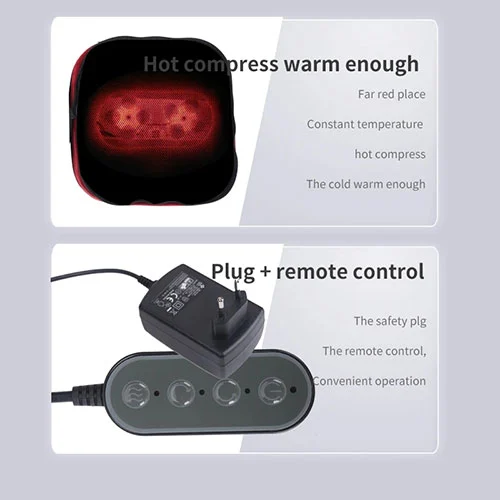

The heating system operates at approximately 40°C. The heating element provides warmth inside the enclosed plush section, allowing the warming function to be used together with mechanical massage.

The combination of mechanical movement and controlled warmth makes the product suitable for seasonal foot-warming and relaxation product lines.

Two-Piece Construction

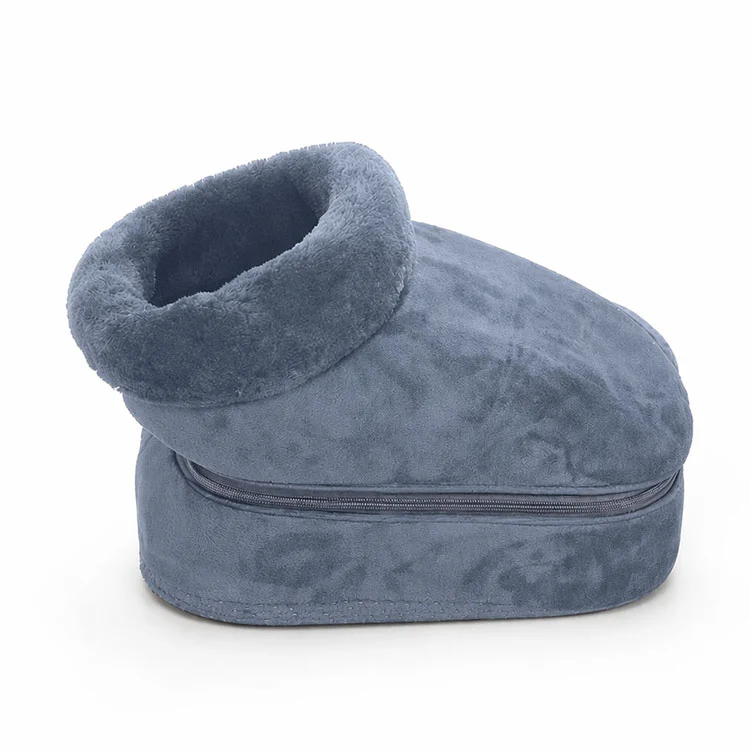

The XB-8086 Fatigue-Relieving Electric Fabric Foot Massager uses a separate fabric cover and ABS massage base.

The upper section is made from soft plush fabric designed for direct contact with the feet. Different fabric densities and surface materials can be considered for OEM projects, allowing buyers to develop different seasonal or market-specific versions.

The lower section uses an ABS housing to support the motor, transmission and electrical components. The combination of a soft textile exterior and rigid internal base provides a balance between user contact comfort and structural support.

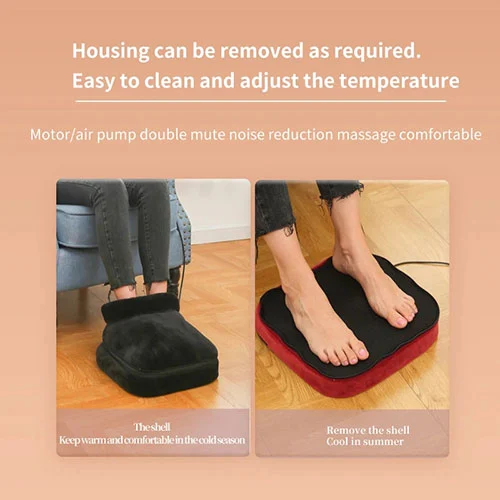

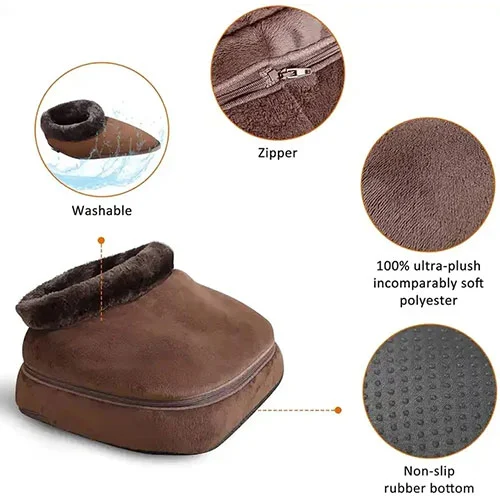

The cover uses a removable zipper construction and can be taken off for hand washing or machine washing according to the care instructions.

Technical Specifications

Material and Color Options

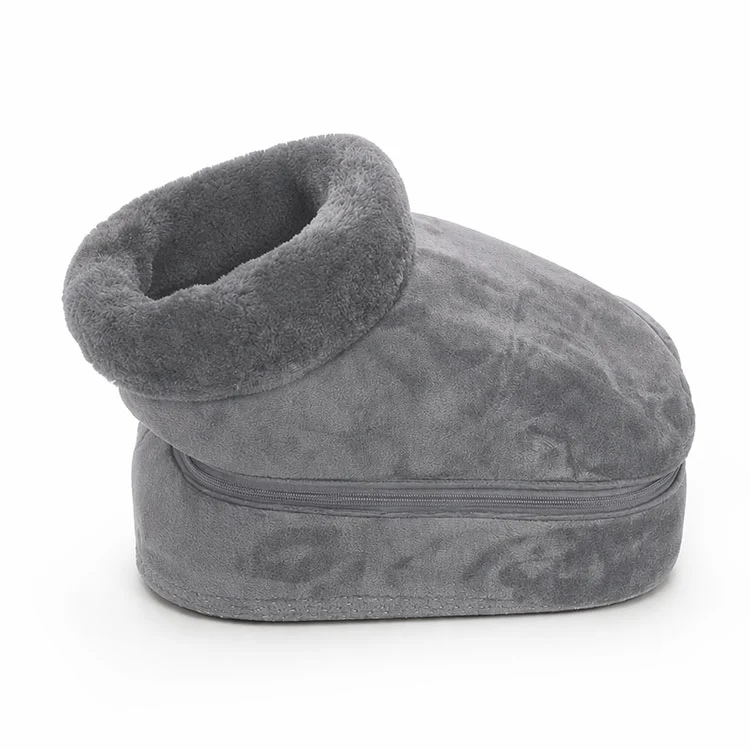

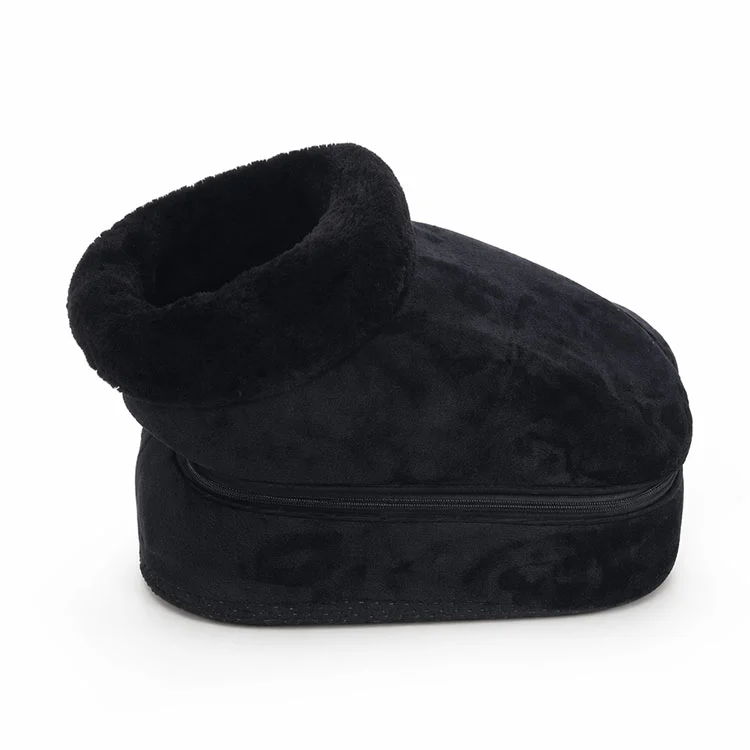

The standard housing colors include dark space gray and black, providing practical options for regular home use and retail product lines.

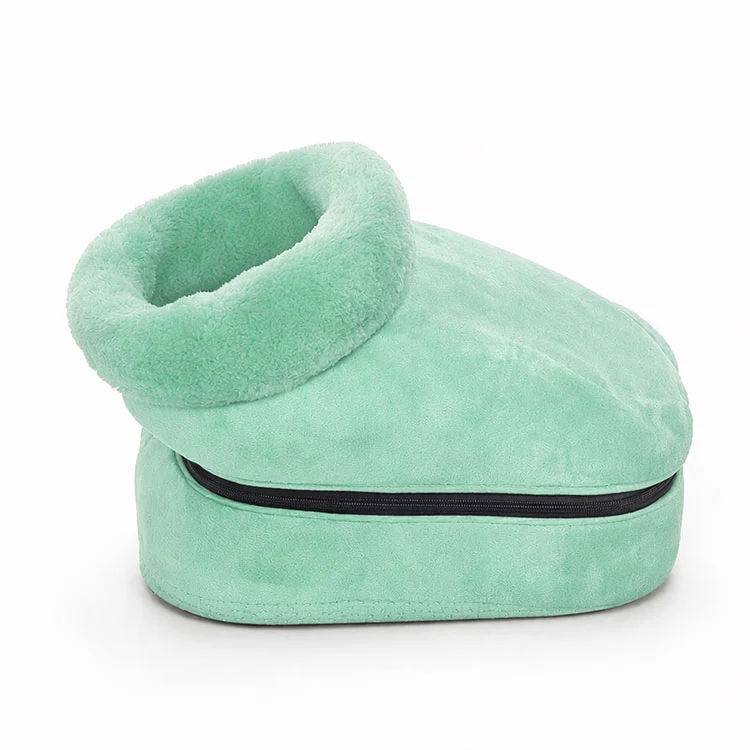

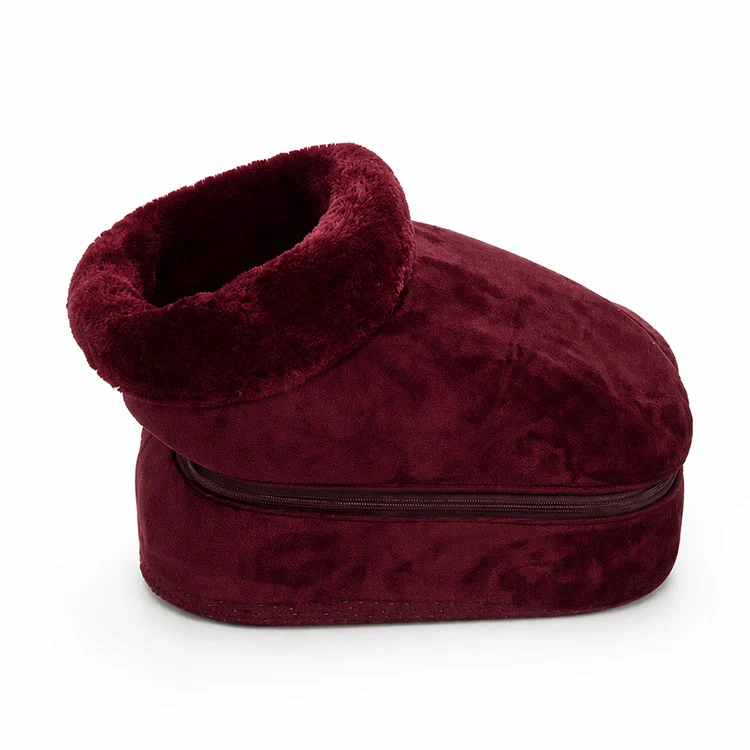

For OEM projects, the plush cover can be customized in different colors according to the customer's brand identity or seasonal campaign. Options such as pink, deep blue and other colors can be developed subject to material availability, color requirements and order quantity.

The plush material itself can also be discussed during product development. Different fabric densities and textile specifications can be considered depending on the desired hand feel, appearance and target market.

Manufacturing Process

The XB-8086 Fatigue-Relieving Electric Fabric Foot Massager is manufactured through a combination of textile processing, electrical assembly, mechanical assembly and final functional inspection.

The fabric cover is first cut and sewn according to the approved dimensions. The motor, circuit board and other internal components are then installed into the ABS massage base.

After internal assembly, the massage mechanism is checked under simulated operating conditions. The housing is assembled after the internal components have passed the relevant inspections.

Finished units undergo 100% full-load aging testing, followed by functional inspection, cleaning and packaging.

This production structure allows Xingbu to manage both the textile and electronic aspects of the product within its manufacturing system.

Quality Control

Xingbu applies quality inspection to incoming components, production processes and finished products.

For incoming materials and critical components, IQC checks are carried out before materials enter production. The core motor is required to pass a continuous 500-hour operating test under the applicable reliability testing procedure.

During production, IPQC personnel monitor assembly quality and product performance. For vibration and operating noise inspection, 5 units are sampled from every 10 units according to the established inspection requirements.

Finished products undergo final functional inspection before storage. Simulated drop testing is also used to evaluate the ability of the finished package and product to withstand handling and international transportation.

The factory's finished-product pass rate remains at approximately 99.5%.

Certifications and Compliance

Xingbu's production management systems are certified to ISO9001, ISO13485 and BSCI requirements.

The product certification and compliance documentation includes CE, CB, ETL, RoHS and FCC, with the applicable certification package confirmed according to the final product configuration and destination market.

Xingbu also holds multiple design patents, utility model patents and invention patents across its product portfolio. For OEM and ODM customers, these capabilities support the development of customized product configurations and branded product lines.

OEM and ODM Customization

The XB-8086 Fatigue-Relieving Electric Fabric Foot Massager can be customized for private-label and retail programs.

For the fabric section, customers can select different plush materials and fabric densities according to the target market. The cover color can also be customized for specific brand identities or seasonal promotions.

Xingbu can provide customized multilingual care labels, user manuals, packaging and product branding. After the specifications are confirmed, fabric cutting, sewing and electronic component assembly are carried out according to the approved production requirements.

This makes the XB-8086 suitable for e-commerce brands, retailers, distributors and seasonal wellness product programs.

Application Scenarios

The compact design allows the XB-8086 to be used in living rooms, bedrooms, home offices and other personal spaces.

For home users, the product can be placed beside a sofa or chair for foot warming and massage while reading or watching television.

In office environments, its compact size allows it to be positioned under or beside a desk without occupying significant floor space.

The product can also be developed for seasonal gift and retail programs, including Christmas, Mother's Day, Father's Day, birthdays and winter wellness promotions.

Project Case

A German supermarket customer ordered 3,000 units of the XB-8086 before the Christmas selling season.

The customer requested that the user instructions be printed directly on the color box to reduce the use of separate paper manuals. Xingbu worked with the customer to adapt the packaging design and integrate the required instructions into the packaging artwork.

The customized batch was completed according to the agreed requirements and sold through within two weeks after launch.

This project demonstrates the flexibility of the XB-8086 for seasonal retail programs where packaging, documentation and delivery schedules need to be coordinated with the customer's sales calendar.

Product Comparison and Use Considerations

The XB-8086 is positioned as a compact combination of a fabric foot warmer and mechanical kneading massager. Compared with a conventional hard-shell foot massager, its removable plush cover provides a different user-contact experience and allows the textile appearance to be customized for seasonal or retail programs.

Its 18W rated power, 24V DC input, 1.5 kg net weight and 30 × 30 × 19 cm product size make it particularly suitable for buyers looking for a lightweight product with compact packaging and relatively low operating power.

For buyers prioritizing a more comprehensive full-coverage massage system with multiple massage functions, ankle air compression, heating and wireless remote control, Xingbu's XB-8588 can be considered as a higher-function alternative.

Operating Guide

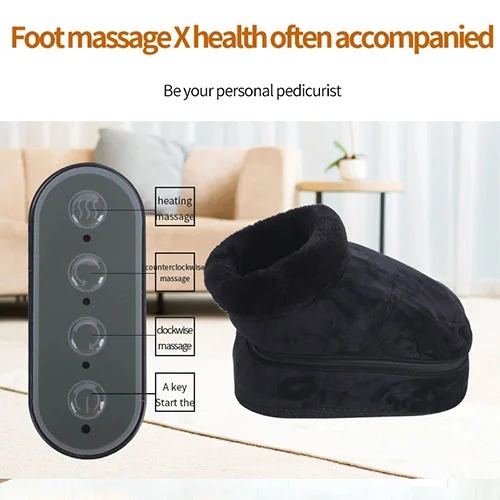

The XB-8086 uses a simple control system for daily operation.

The green button starts the massage function, while the rotation direction can be switched according to the selected operating mode.

When the red indicator light is illuminated, the heating function is active.

Users can select the required massage intensity and mode according to their preference. Before cleaning, the product should be switched off and disconnected from the power supply, and the fabric cover should be removed according to the product instructions.

Working Principle

The XB-8086 uses dual rotating kneading wheels driven by a 24V DC motor. The reduction gearbox converts the motor's rotation into the mechanical movement required by the kneading mechanism.

As the massage wheels rotate, they generate repeated pressure and kneading movements around the foot area. The heating element provides controlled warmth inside the enclosed fabric section, creating a combined warming and mechanical massage experience.

The separate fabric cover surrounds the foot-contact area, while the ABS base supports the motor, transmission and electrical components. This combination allows the product to maintain a compact form while integrating both foot warming and mechanical massage functions.

Packaging and Shipping

The standard shipping configuration uses a reinforced color box with protective internal packaging.

The compact product dimensions help reduce shipping volume. The master carton measures approximately 51.5 × 33 × 33 cm and holds 2 units, with a gross carton weight of approximately 4 kg.

The relatively low carton weight and compact carton dimensions can help reduce logistics costs for cross-border e-commerce and retail orders.

Packaging specifications can also be customized according to the customer's distribution channel and transportation requirements.

FAQ

Can the plush cover be removed for cleaning?

A: Yes. The cover uses a removable zipper design and can be taken off for hand washing or machine washing according to the care instructions.

Is the massage strong enough with an 18W motor?

A: The XB-8086 uses an 18W motor combined with a high-torque reduction gearbox. The transmission system is designed to provide the mechanical output required by the kneading mechanism while maintaining relatively low rated power consumption.

Does the product use low-voltage power?

A: Yes. The massage unit operates on 24V DC. The power supply configuration should be confirmed according to the final order and target market.

Can the massage intensity be adjusted?

A: Yes. The XB-8086 Fatigue-Relieving Electric Fabric Foot Massager provides 3 adjustable intensity levels and 2 massage modes. Forward and reverse rotation can also be selected through the control system.

Does it have a heating function?

A: Yes. The heating function operates at approximately 40°C and can be used together with the mechanical massage function.

How long should each session last?

A: A 15–20 minute session is recommended for routine use. The product can be operated again after the previous session has ended according to the product instructions.

Can you ship the product to an overseas FBA warehouse?

A: Yes. Xingbu works with cross-border e-commerce customers and can coordinate FBA labeling, packaging and shipment requirements according to the destination warehouse's requirements.

Are you a manufacturer or trading company?

A: Xingbu is a manufacturer specializing in massage, fitness and healthcare products. Our manufacturing capabilities cover R&D, injection molding, assembly, testing and packaging, with OEM and ODM services available.

Can the fabric cover be customized?

A: Yes. Customers can customize the fabric material, fabric color and related textile specifications according to the project requirements and order quantity.

Can the product be supplied with our own brand?

A: Yes. OEM/ODM services can include logo application, fabric colors, care labels, multilingual manuals, packaging and other branding requirements.
