Deep Kneading Electric Foot Massager

The XB-8592 Deep Kneading Electric Foot Massager is designed as a fully enclosed foot massager for buyers looking for a combination of mechanical kneading, compression and heating without moving to a more complex high-end massage platform.

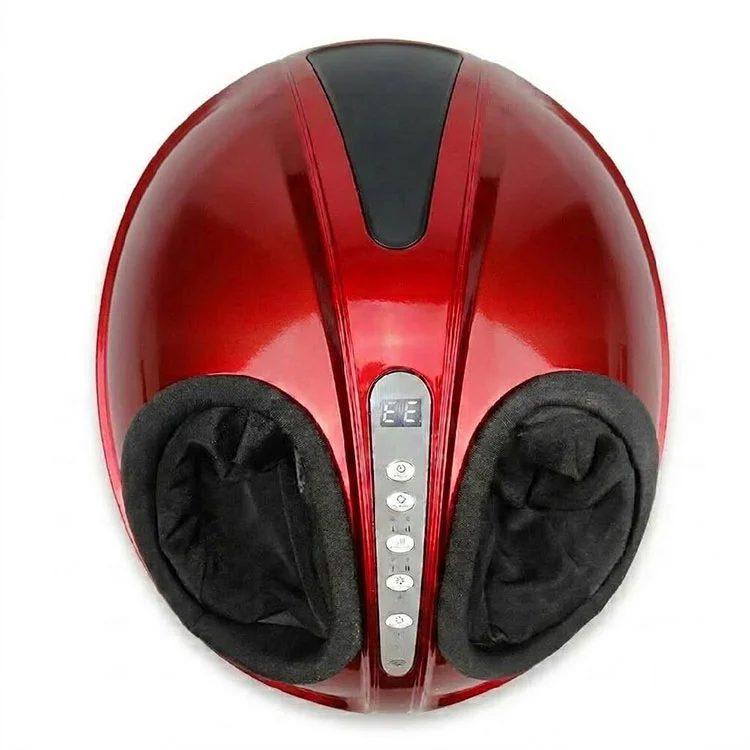

Its rounded egg-shaped housing creates an enclosed space around the feet. The lower section contains the mechanical massage system, while the surrounding airbag structure applies intermittent compression during operation. Heating is integrated into the massage chamber to provide approximately 40°C warmth.

The unit is powered directly from a 110–220V AC supply and has a rated power of 40W. This plug-in configuration provides continuous power during use and avoids the charging and battery-life considerations associated with cordless products.

The removable fabric liner also makes routine cleaning easier, which is useful for products intended for regular household use or retail programs.

Massage Mechanism

The main massage function is provided by a 3D rotating roller system driven through a gearbox. As the motor rotates, the transmission system transfers the movement to the massage heads at the bottom of the unit.

The rollers create repeated kneading and pressure movements across the sole area. The three available intensity levels allow the user to select a lighter or stronger massage setting.

At the same time, a miniature air pump supplies the surrounding airbags. The airbags inflate and release in cycles, applying intermittent compression around the foot.

This combination gives the XB-8592 three different operating elements within one enclosed structure: mechanical kneading from below, air compression around the foot and controlled warmth inside the massage chamber.

Heating Function

The integrated heating element provides approximately 40°C warmth during operation.

The heating function is positioned within the enclosed foot area, allowing the warmth to remain around the feet while the mechanical rollers and air compression system operate.

The combination is particularly suitable for winter wellness products and retail programs where foot warming is an important part of the product positioning.

Technical Specifications

Housing, Fabric and Color Options

The main housing is manufactured from ABS engineering plastic, providing structural support for the motor, gearbox, air pump and electrical components.

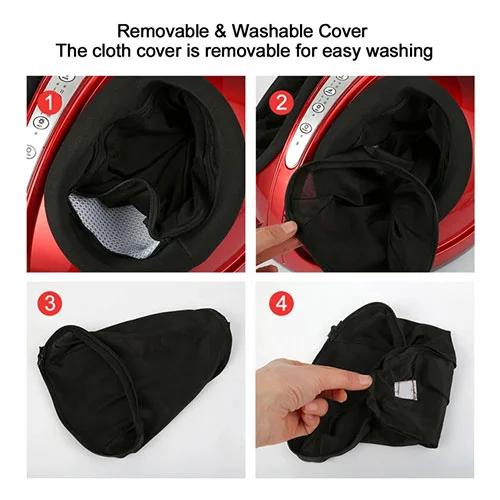

The foot-contact area uses wear-resistant and breathable fabric. The fabric liner can be removed through its zipper design for regular cleaning.

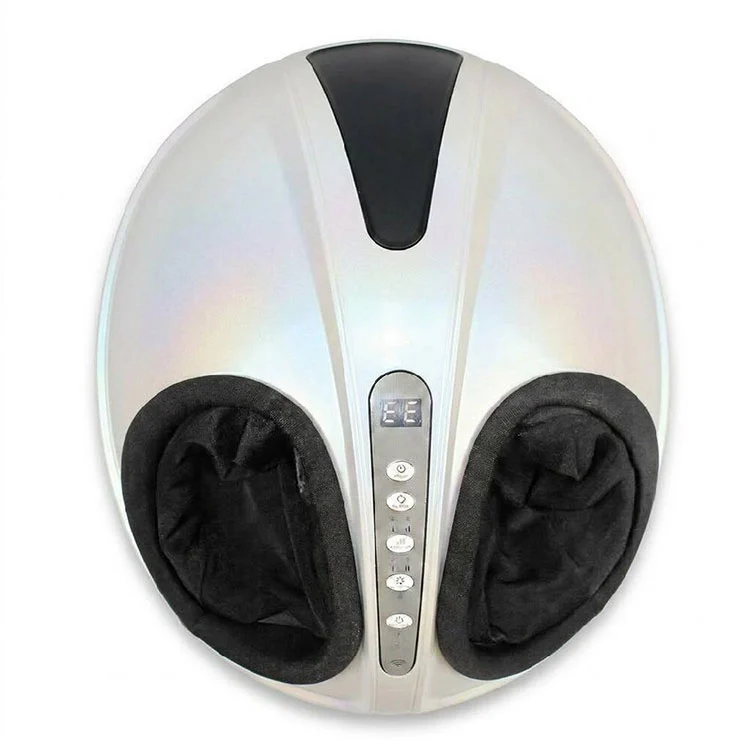

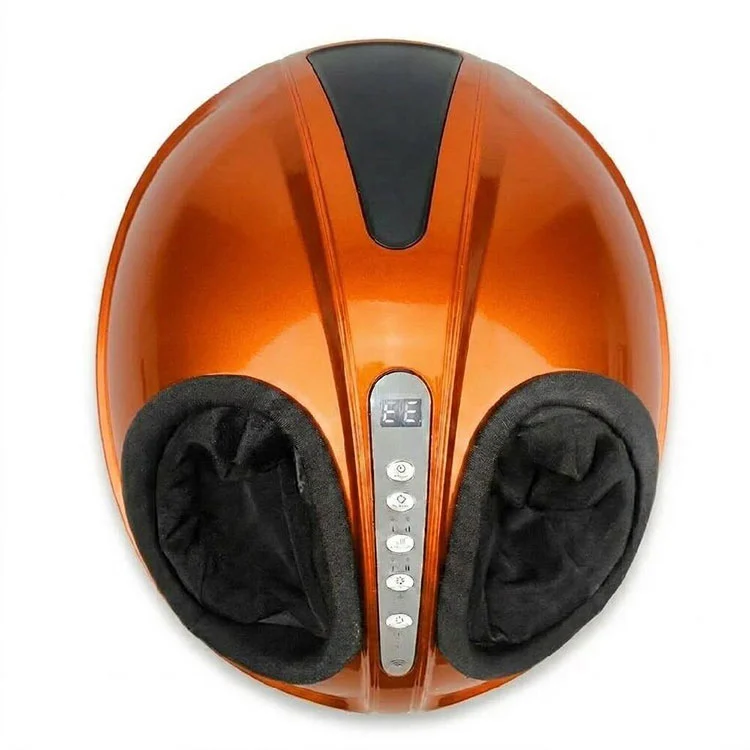

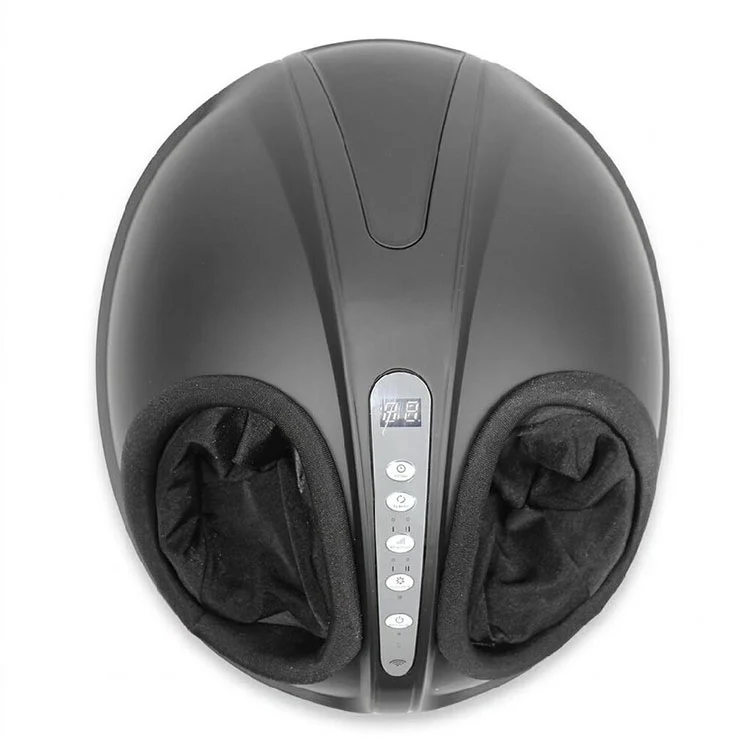

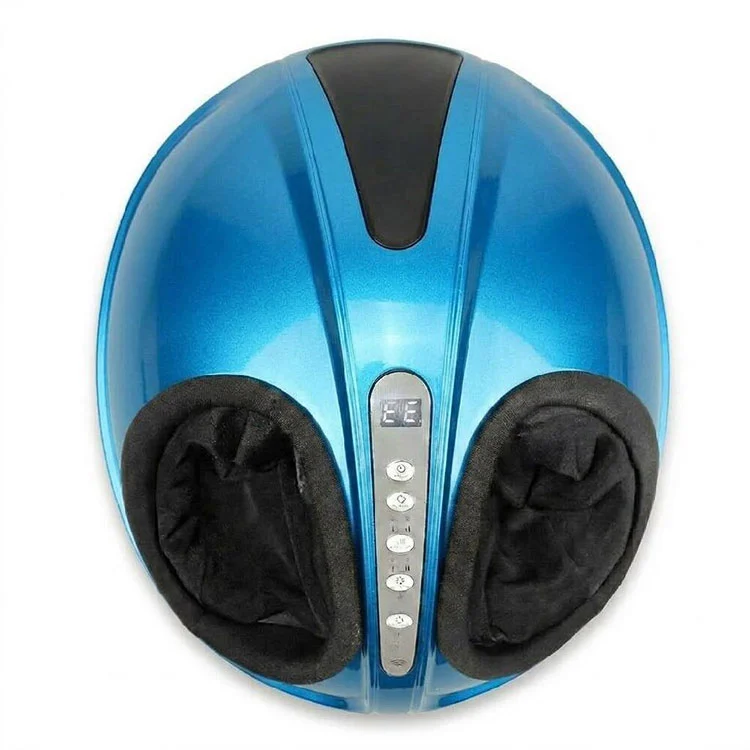

Standard production can be supplied in black and other existing colors. For bulk OEM orders, Xingbu can customize the housing color, including white, black, gold and other colors according to the approved specification.

Customer branding can be applied to the housing by screen printing. Packaging and other visual elements can also be customized for private-label projects.

Manufacturing Process

The XB-8592 Deep Kneading Electric Foot Massager is manufactured through injection molding, mechanical and electrical assembly, functional testing and final packaging.

ABS housing components are produced through injection molding before the motor, gearbox, circuit board and air pump are installed. The air compression system is checked for sealing performance before final assembly.

The assembled unit is operated under simulated load conditions to verify the massage mechanism and related functions. After the housing is fully assembled, each finished unit undergoes 100% full-load aging testing, followed by functional inspection, cleaning and packaging.

Quality Control

Xingbu carries out quality inspections from incoming components through final production.

During IQC, critical components are checked against established specifications. The core motor must pass a continuous 500-hour operating test before entering production.

During assembly, IPQC personnel monitor the production process and conduct vibration and operating-noise inspections. The established procedure samples 5 units from every 10 units for vibration noise testing.

Finished products undergo final functional inspection before storage. Simulated drop testing is also used to assess product and packaging resistance during transportation.

The finished-product pass rate has remained at approximately 99.5%.

OEM and ODM

Xingbu supports OEM and ODM projects for distributors, retailers, e-commerce brands and wellness product companies.

Customization can cover product color, screen-printed logo, color-box artwork, packaging materials and other branding requirements.

The customization process starts with confirming the order quantity and project requirements. Xingbu can then provide packaging layout support, produce according to the approved sample, complete internal QC inspection and prepare the finished goods for shipment.

For customers selling through FBA or other overseas fulfillment systems, packaging and labeling requirements can be reviewed before mass production.

Project Case

A North American cross-border e-commerce brand selected the XB-8592 as its entry-level foot massager.

One of the main requirements was to control logistics and fulfillment costs without removing the core functions required for the target market.

Xingbu optimized the packaging dimensions so that the finished product could fit the standard shipping carton requirements of the customer's local logistics carrier. This helped reduce the customer's FBA storage costs and made the product more suitable for cross-border fulfillment.

Packaging and Container Loading

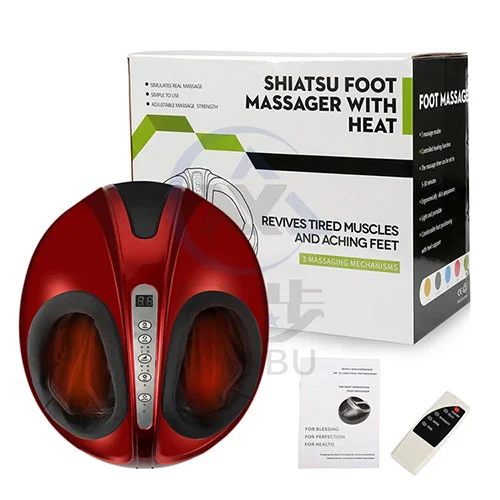

The standard color box measures approximately 44.4 × 24.7 × 37.6 cm.

For bulk export orders, the approximate loading capacity is:

The actual quantity may vary according to the final packaging configuration, pallet requirements and loading method.

Reinforced foam is used inside the packaging to help protect the housing and internal structure during international transportation.

Applications

The XB-8592 Deep Kneading Electric Foot Massager can be used in home wellness, office, retail and gift channels.

For home users, it can be placed beside a sofa or chair for regular foot massage and warming. Its enclosed structure also makes it suitable for seasonal winter wellness campaigns.

For e-commerce brands and retailers, the product can be positioned as an entry-level or mid-range electric foot massager, particularly for markets where mechanical kneading, air compression and heating are expected at a competitive price point.

It can also be offered through gift programs for Christmas, Mother's Day, Father's Day and birthday promotions.

Working Principle

The XB-8592 operates through the coordinated action of its mechanical drive, air compression system and heating element.

The motor transfers rotational power through the gearbox to the bottom massage heads. The resulting circular movement creates the kneading and pressure action beneath the feet.

A miniature air pump then supplies the surrounding airbags, which inflate and release cyclically to produce physical compression around the foot.

At the same time, the electric heating element generates controlled warmth of approximately 40°C inside the enclosed massage chamber. The three functions operate within the same foot compartment to provide a combined mechanical massage, compression and warming experience.

Usage Guidelines

The XB-8592 Deep Kneading Electric Foot Massager should only be used while seated. Do not stand on the machine or place body weight on the housing.

For normal use, a single session should not exceed 120 minutes. Users should follow the operating instructions supplied with the product.

Keep the machine away from water and other liquids. Do not pour water into the machine. Disconnect the power supply before cleaning the product or removing the fabric liner.

FAQ

What massage mechanism does the XB-8592 use?

A: It uses a 3D rotating roller mechanism driven through an internal gearbox. The rollers provide mechanical kneading and pressure beneath the feet, while integrated airbags provide intermittent compression around the foot.

Why does the XB-8592 use direct AC power?

A: The unit is designed for continuous plug-in operation with a 110–220V AC input and 40W rated power. This provides stable operating power without relying on battery capacity or charging cycles.

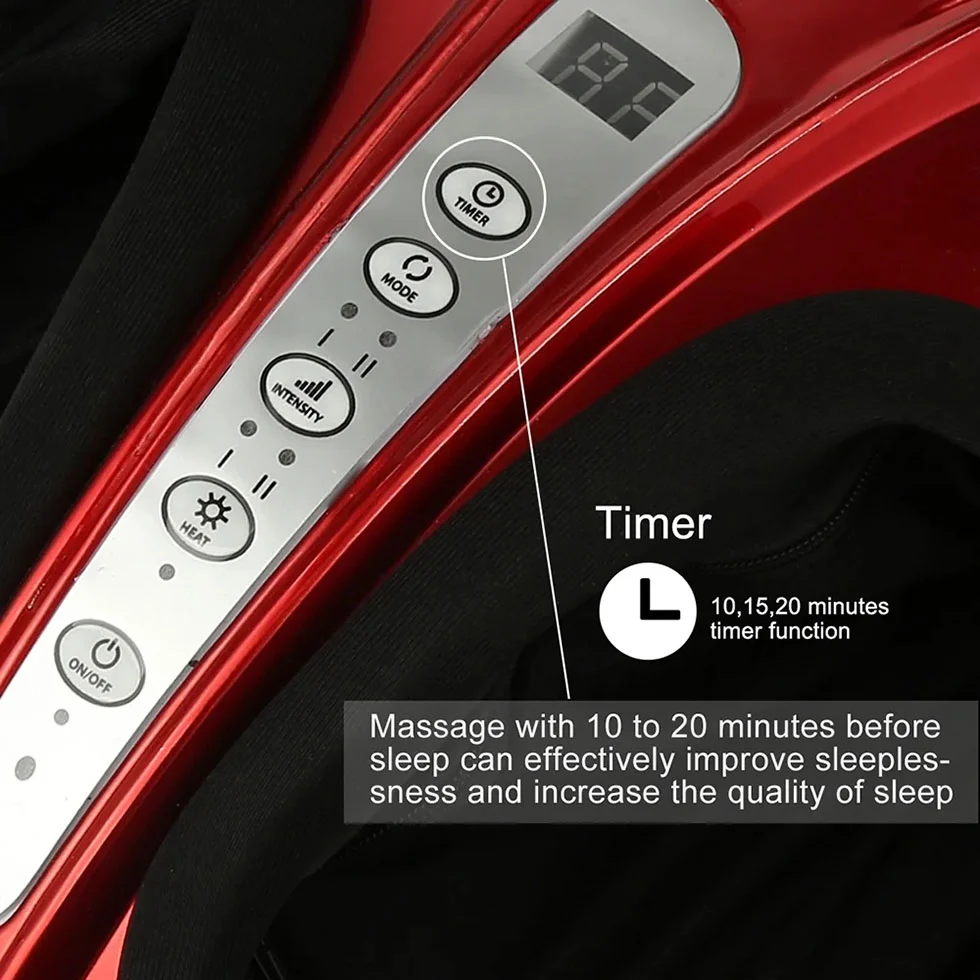

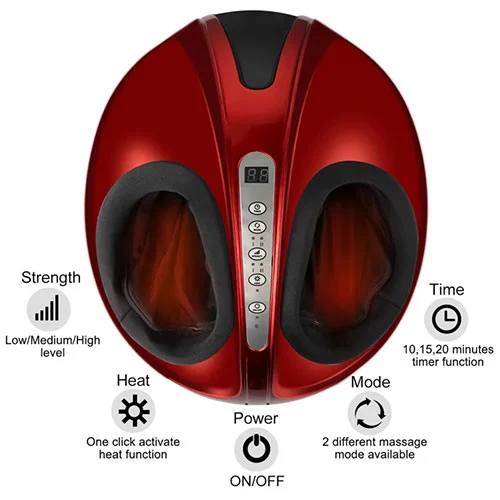

Can the massage intensity be adjusted?

A: Yes. The XB-8592 provides 3 adjustable intensity levels to accommodate different user preferences.

Can the fabric liner be removed for cleaning?

A: Yes. The liner has a zipper design and can be removed for cleaning. The applicable washing method should follow the care instructions supplied with the product.

Can the product be customized for private-label sales?

A: Yes. Xingbu can customize the housing color, screen-printed logo, packaging artwork and other branding elements according to the project requirements and order quantity.

What reliability testing is performed on the motor?

A: The core motor undergoes a continuous 500-hour operating test as part of the incoming quality inspection process.

Can the XB-8592 be supplied for FBA sales?

A: Yes. Xingbu works with cross-border e-commerce customers and can coordinate packaging, labeling and shipment requirements for FBA and other overseas fulfillment channels.

What is the container loading capacity?

A: The approximate loading capacity is 600 units for a 20FT container, 1,200 units for a 40FT container and 1,450 units for a 40HQ container. Final quantities depend on the confirmed packaging and loading configuration.

Why Choose Xingbu

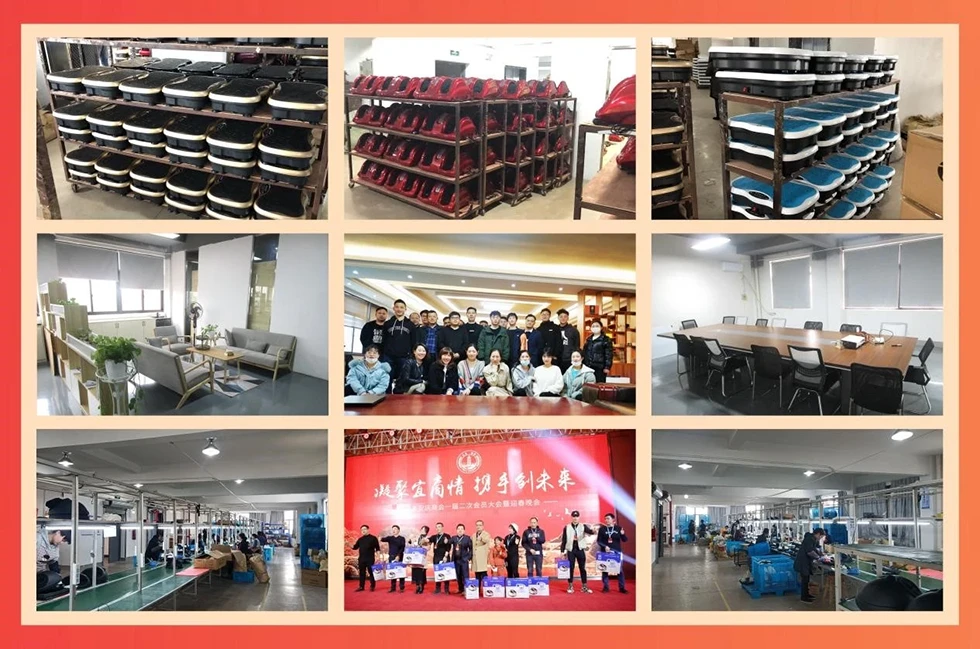

Xingbu began its business in 1999 and established Xingbu Tech in 2016. The company has developed into an integrated manufacturer covering R&D, manufacturing and global sales, with a focus on massage, fitness and healthcare products.

The company operates more than 30,000 m² of manufacturing space and has approximately 200 operational and engineering staff. Its annual production capacity exceeds 800,000 units.

Xingbu has a 12-person R&D team, including 6 experienced engineers, and develops approximately 15–20 new models annually. The company holds more than 30 patents and trademarks and has manufacturing systems certified to ISO9001, ISO13485, ISO14001 and BSCI requirements.

Its manufacturing capabilities cover injection molding, assembly, testing and packaging, allowing Xingbu to support customers from product development through mass production and shipment.

The company supplies customers in more than 60 countries, serving online sellers, retailers, distributors and private-label brands. OEM/ODM services are available for customers requiring customized products, packaging and branding.
