Roller Heated Vibration Calf and Foot Massager

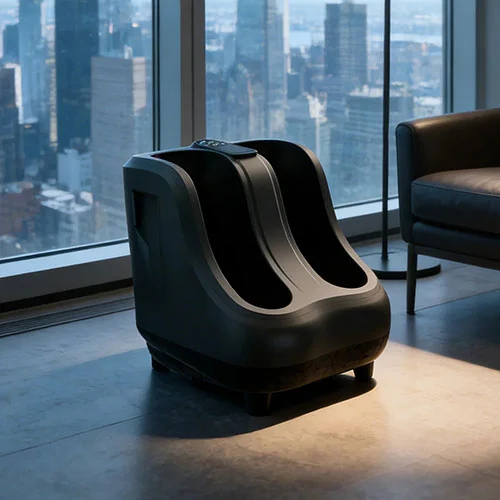

The XB-8590C Roller Heated Vibration Calf and Foot Massager is built around a deep U-shaped massage chamber that accommodates both the lower legs and feet. Unlike foot-only models, its massage coverage extends upward from the soles and ankles toward the calf area.

The internal system combines mechanical massage, air compression and vibration. The bottom massage mechanism provides rotating kneading action under the feet, while the air chambers around the legs create repeated compression. A separate vibration motor adds another type of mechanical stimulation during operation.

The control panel is positioned on the top of the housing, allowing users to see the operating information and adjust the settings without having to bend down toward the side or front of the machine.

Calf and Foot Massage Structure

The XB-8590C uses different mechanisms for different massage areas.

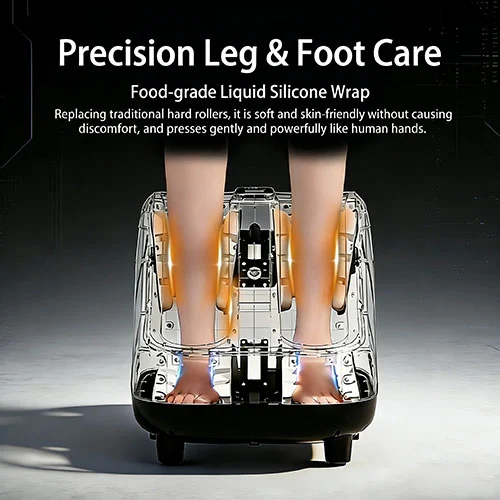

At the bottom, an eccentric-wheel transmission drives the 3D massage heads, creating rotating and changing pressure movements across the soles.

Around the calves and feet, the air compression system uses a variable-frequency air pump to control the inflation and release of the airbags. The changing air pressure creates repeated compression around the lower legs.

The vibration motor operates together with the mechanical massage system to add high-frequency vibration to the overall massage program.

This combination allows the XB-8590C to cover the calves, ankles and soles within one machine rather than requiring separate foot and calf devices.

Deep-Chamber Design

The deep chamber is one of the defining features of the XB-8590C.

The user's lower leg slides into the upper opening while the foot rests on the bottom massage platform. The surrounding chamber provides space for the calf airbags and mechanical components without requiring the user to manually position separate massage attachments.

The internal fabric liners are fitted with concealed zippers and can be removed for cleaning. This is useful for households where the machine is used regularly and for retailers offering the product as a shared wellness device.

Heating and Vibration

The heating system provides warmth during the massage session and can be used together with the mechanical and air-compression functions.

The vibration motor is an additional feature of the XB-8590C compared with simpler calf and foot massagers. It produces high-frequency mechanical vibration while the 3D massage mechanism performs its rotating kneading movement.

The combined operation is intended to provide a more varied massage pattern rather than relying on a single mechanical movement.

Top-Mounted Control Panel

The control interface is positioned on the top surface of the machine rather than low on the housing.

This layout makes the display easier to see while the user is seated. It is particularly useful for older users or anyone who finds it inconvenient to bend down during operation.

The top panel provides direct access to the main operating controls and timer settings.

Technical Specifications

Materials and Appearance

The main housing uses ABS material with a practical surface finish designed for regular household handling.

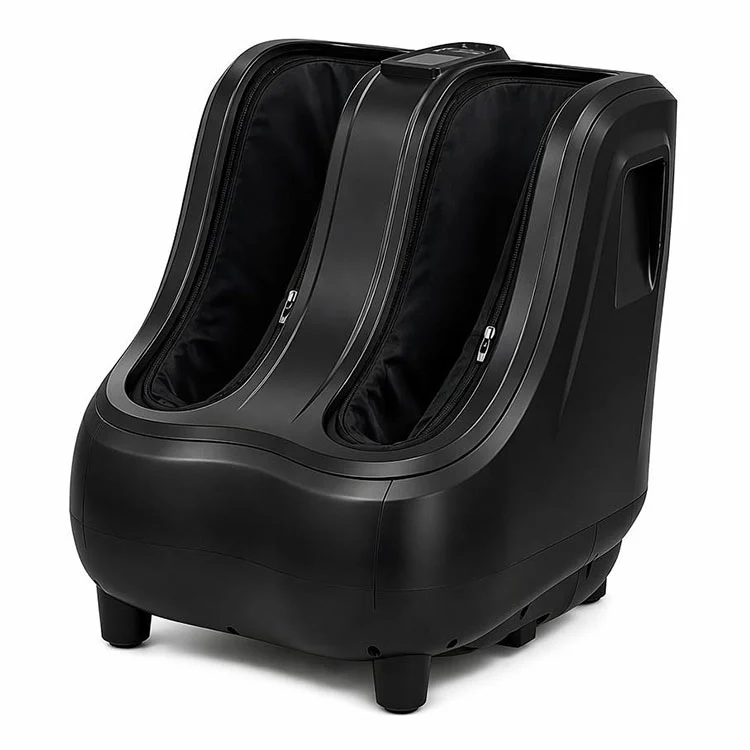

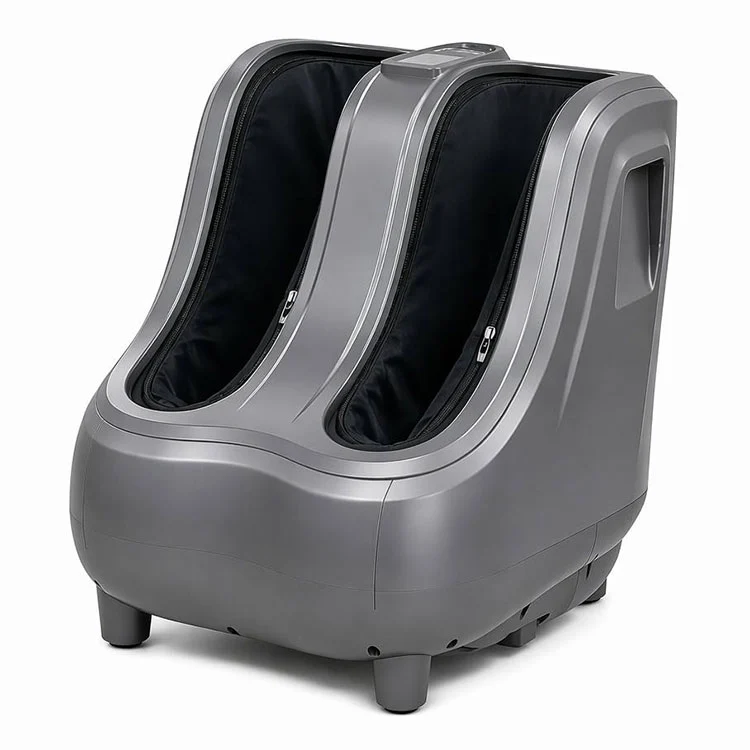

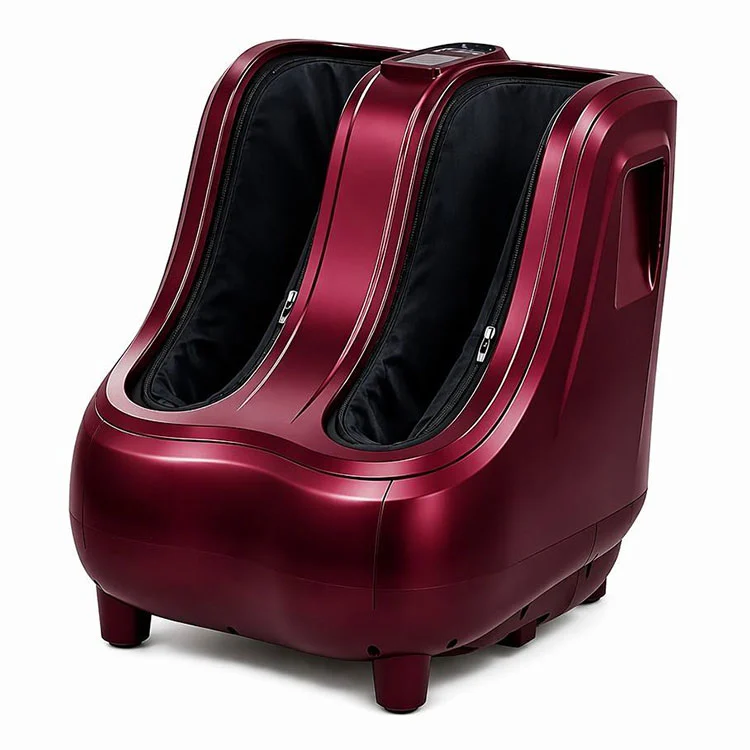

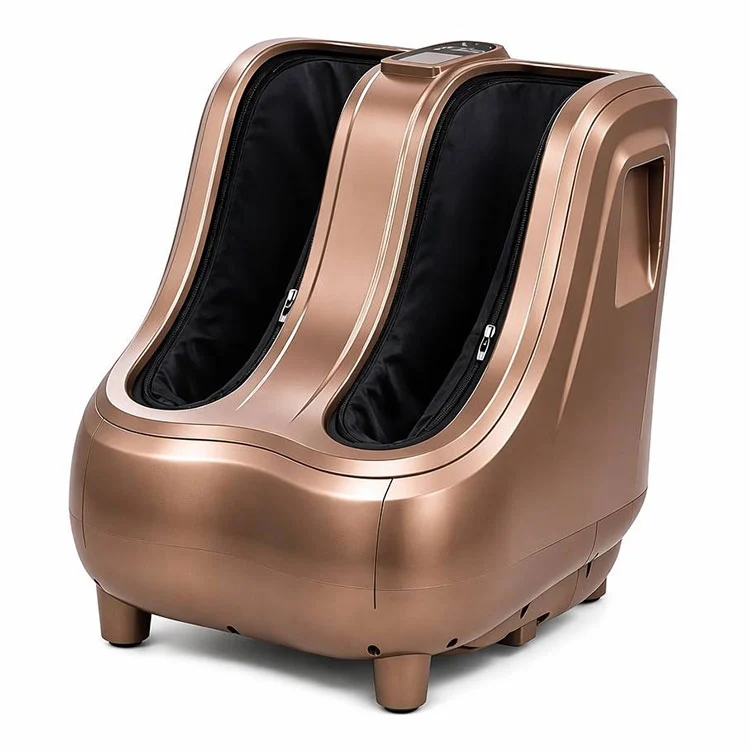

Available colors include matte technical black, red, gray and gold. OEM customers can discuss additional colors according to their branding requirements.

Ergonomic hand recesses are incorporated into the side of the housing to make the approximately 10.5 kg unit easier to move.

The calf and foot contact areas use thick, soft fabric liners. Both the calf and foot sections use concealed zippers for removal and cleaning.

OEM and ODM Customization

Xingbu provides OEM/ODM support for brands, distributors and cross-border e-commerce companies.

The customization process covers logo placement, control-panel language, product appearance and export packaging.

For example, the control panel can be customized with English or other required language markings. After the design is confirmed, Xingbu can produce a branded physical sample for approval before starting mass production.

Customized color boxes and export cartons can also be developed according to the customer's packaging requirements.

Manufacturing Process

The XB-8590C Roller Heated Vibration Calf and Foot Massager is manufactured through a production sequence designed around its mechanical, pneumatic and electronic systems:

Injection molding → transmission mechanism assembly → air pump and solenoid valve connection → airbag leakage testing → top control-panel installation → 100% full-load aging test → final inspection → packaging

The airbag circuit is checked for sealing performance before the finished housing is assembled. The completed unit then undergoes full-load operation testing before final inspection.

Quality Control

Because the XB-8590C combines an 80W drive system with pneumatic and vibration components, Xingbu performs additional operating checks during final inspection.

Every finished unit undergoes a simulated load test at 100 kg for 30 minutes. The unit must operate continuously without abnormal heating before being released to storage.

The 80W motor also undergoes insulation and dielectric-strength testing to verify electrical safety before shipment.

These checks are performed in addition to routine assembly and finished-product inspections.

Certifications and Product Compliance

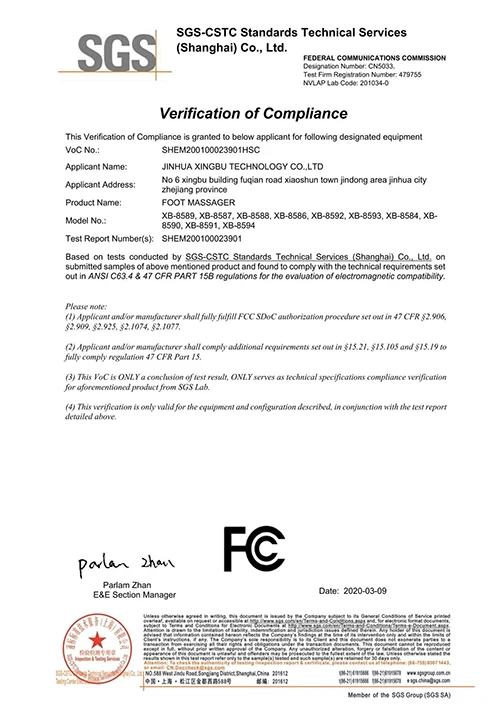

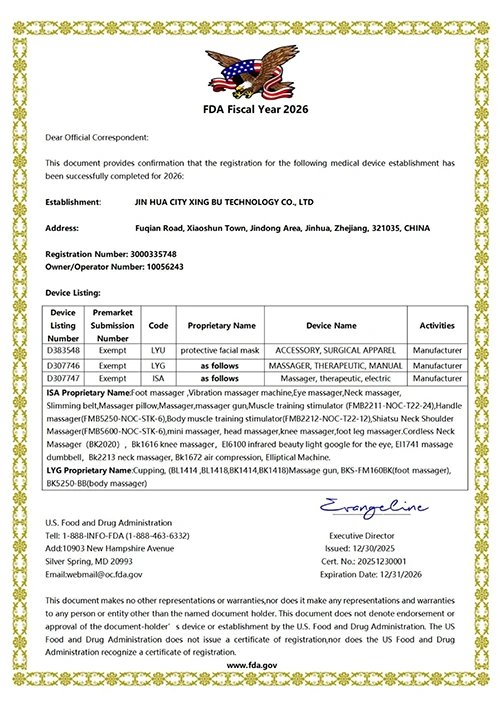

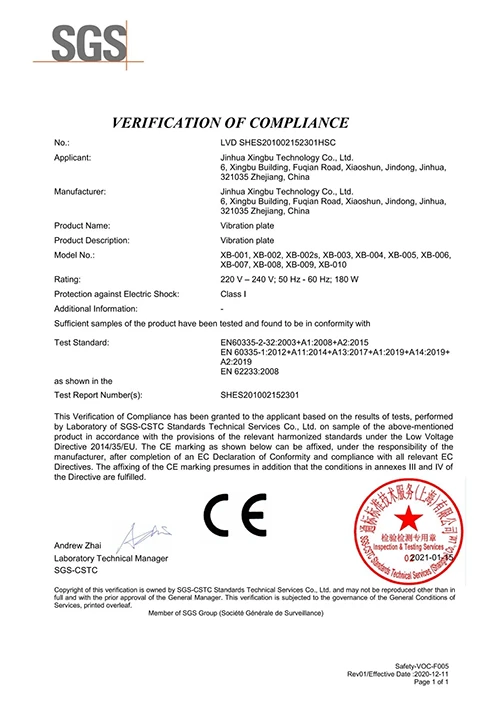

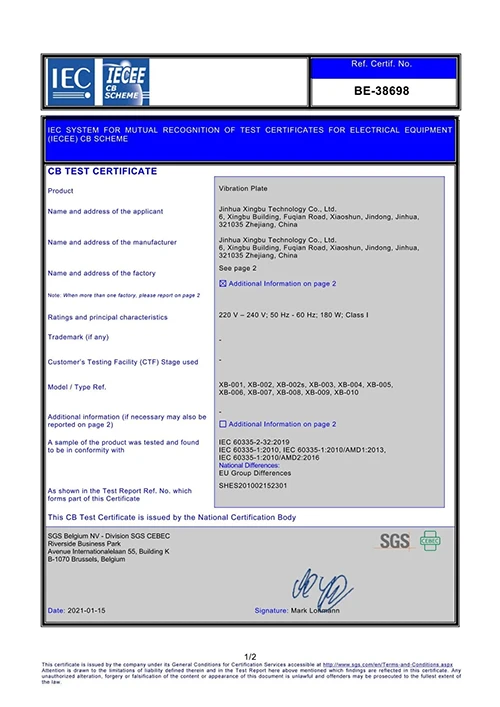

The XB-8590C is available with applicable documentation including: FDA, CE, RoHS, FCC, CB

Xingbu also holds design patents and multiple utility model patents covering relevant product designs and structures.

The final certification and documentation package should be confirmed according to the destination market and final electrical configuration.

Project Case

Xingbu supported a North American health-equipment brand in launching the XB-8590C on Amazon.

Based on the customer's feedback on the original user experience, Xingbu optimized the top-mounted digital control interface to make the operating information easier to view and the controls easier to reach.

During the customer's first quarter after launch, the product sold approximately 3,000 units. The customer reported a 30% lower return rate than comparable leg-massage products, with ease of operation and overall user experience frequently mentioned in buyer reviews.

Packaging and Transportation

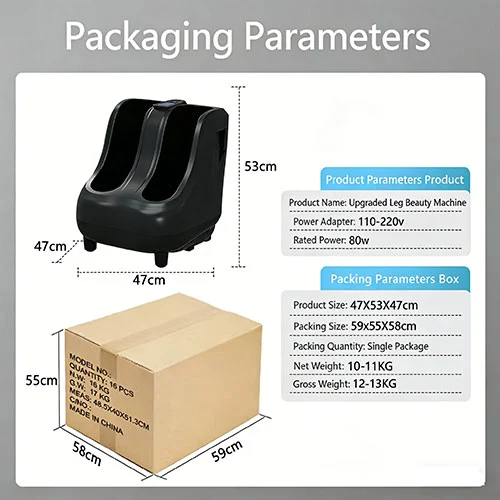

The standard export packaging consists of internal molded foam protection, a color box and a reinforced five-layer corrugated outer carton.

The packaging structure is designed to protect the housing and internal massage mechanism during handling and international transportation.

Xingbu supports FCL and LCL sea freight and can coordinate logistics arrangements according to the customer's shipment requirements.

Usage Guidelines

Sit in a stable position before using the XB-8590C. Slide the lower legs smoothly into the massage chambers and place the feet naturally on the bottom massage area.

Connect the power supply and switch on the main power. Press the Power button on the top control panel to begin operation.

For first-time use, it is recommended to start with Level 1 and increase the intensity only after becoming familiar with the massage action.

The standard session is 15 minutes. Follow the supplied user manual for operating limits, cleaning instructions and other safety requirements.

Applications

The XB-8590C Roller Heated Vibration Calf and Foot Massager is suitable for home wellness, office environments and retail massage-equipment programs.

For home use, it can be placed in front of a sofa or lounge chair for combined calf and foot massage.

In offices, the deep-chamber structure allows users to massage the lower legs and feet while seated during breaks.

For private-label brands, the combination of calf coverage, foot massage, heating and vibration gives the model a broader product positioning than basic foot-only massagers.

FAQ

What is the difference between the XB-8590C and the XB-8590?

A: The XB-8590C introduces several changes to the user interface and massage configuration. The control panel has been moved to the top of the machine and uses a digital display, making the operating status easier to view without bending down. The XB-8590C also incorporates a vibration motor, while its overall dimensions, massage coverage, heating and massage intensity have been upgraded compared with the standard configuration.

Does the XB-8590C massage both the calves and feet?

A: Yes. The deep massage chamber is designed to accommodate the calves, ankles and feet in one unit. Air compression works around the lower legs, while the bottom mechanical system works on the feet.

What does the 80W motor drive?

A: The drive system supplies power to the internal mechanical massage mechanism. The bottom transmission uses an eccentric-wheel structure to drive the 3D massage heads, while the product also incorporates separate pneumatic and vibration components.

How is the air compression controlled?

A: A variable-frequency air pump works with the solenoid valves to control the inflation and release of the airbags. The pneumatic circuit is tested for sealing during production before the finished product enters final assembly.

How is the 80W motor tested?

A: The finished machine undergoes a 100 kg simulated-load test for 30 minutes. The motor also receives insulation and dielectric-strength testing to verify electrical safety.

Can the calf and foot liners be removed?

A: Yes. Both the calf and foot liners use concealed zipper designs and can be removed for cleaning.

Can the control panel and packaging be customized?

A: Yes. OEM projects can include logo printing, control-panel language, branded packaging, multilingual manuals and customized export cartons.

Can Xingbu provide OEM/ODM production?

A: Yes. Xingbu operates its own R&D and manufacturing system covering product development, injection molding, assembly, testing and packaging, allowing the XB-8590C to be supplied for private-label and customized programs.

Why Choose Xingbu

Jinhua Xingbu Technology Co., Ltd. is a manufacturer specializing in massage, fitness and healthcare equipment. The company integrates R&D, injection molding, assembly, testing and packaging to support product development through mass production.

Xingbu has more than 30,000 m² of manufacturing space, approximately 200 operational and engineering staff, and an R&D team of 12 professionals, including 6 experienced engineers. The company develops approximately 15–20 new models each year and holds more than 30 patents and trademarks.

Its manufacturing systems are certified to ISO9001, ISO13485, ISO14001 and BSCI requirements. The company supplies customers in more than 60 countries, including e-commerce sellers, retailers, distributors and private-label brands.

For the XB-8590C Roller Heated Vibration Calf and Foot Massager, Xingbu can support the complete OEM/ODM process from sample development and branding to mass production, quality inspection, packaging and shipment. This makes the model suitable for brands looking to add a higher-specification calf and foot massager to an existing wellness product range.
