EMS Waist Traction Massager

EMS Waist Traction Massager

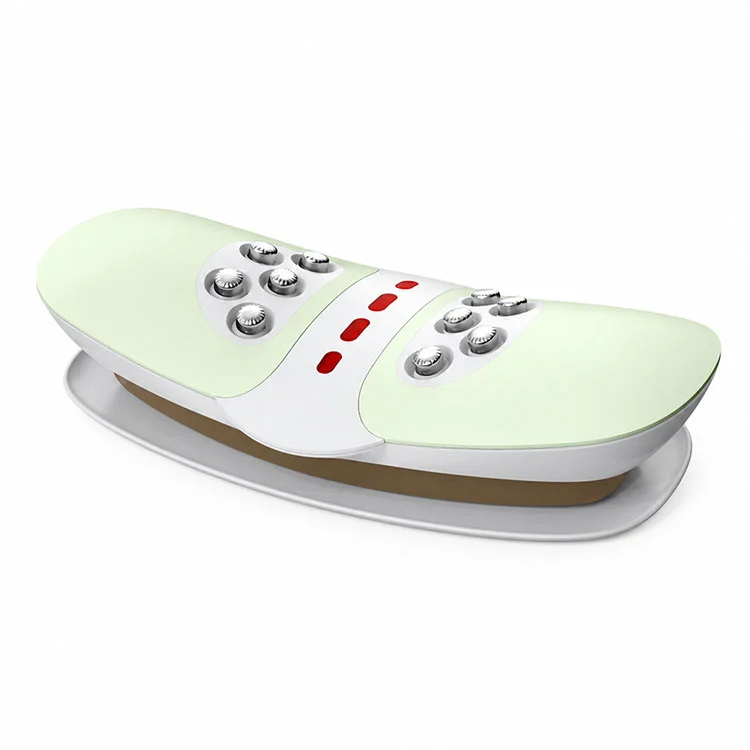

The XB-812A EMS Waist Traction Massager combines electrical muscle stimulation, airbag traction, vibration massage, heat and 640 nm red light in one lower-back device.

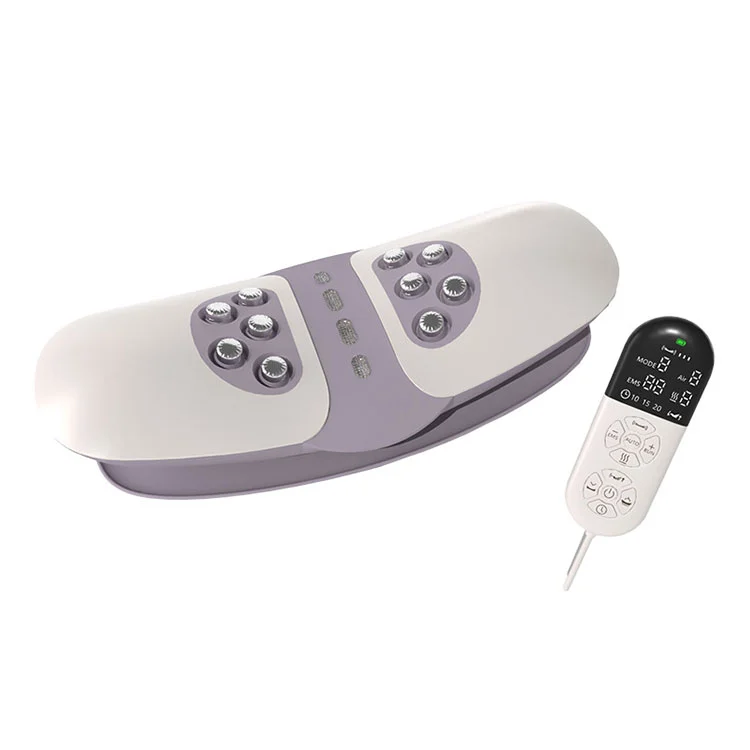

The 410 × 200 × 72 mm body is designed to support the natural curve of the lower back when used in a lying position. A wired control handle provides access to the main functions, while the rechargeable battery allows use without a fixed power connection.

The system provides 12 EMS intensity levels, 3 vibration levels and 3 heating levels, with 10 automatic programs available in the standard configuration.

Traction, Massage and EMS in One System

The main difference between the XB-812A and a basic electric back massager is the combination of several operating mechanisms.

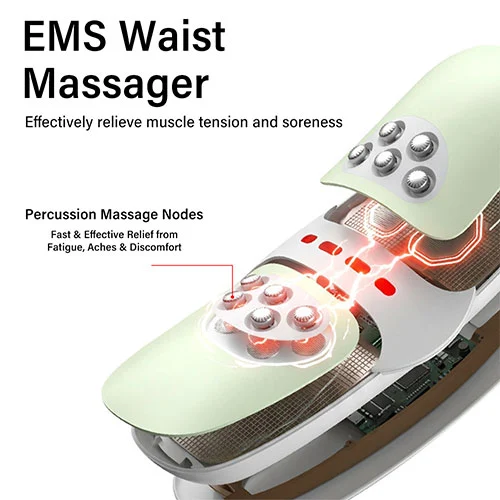

The airbag system provides controlled lifting and pressing movements. The vibration mechanism works through multiple massage points across the lower-back area, while EMS/TENS electrical stimulation provides a separate mode of muscle stimulation.

Heat and 640 nm red light can be used together with the mechanical functions according to the selected program.

Airbag Traction Mechanism

The built-in airbag system uses controlled inflation and deflation to produce lifting and pressing movements around the lower back.

Depending on the selected mode, the airbags can provide upward/downward and left/right movement patterns. The movement is generated by the air pump and controlled by the internal control system.

The device is intended for gentle home massage and stretching. It should not be described as correcting spinal alignment, treating a herniated disc or reducing disc pressure unless the product has the required medical-device classification and supporting clinical evidence.

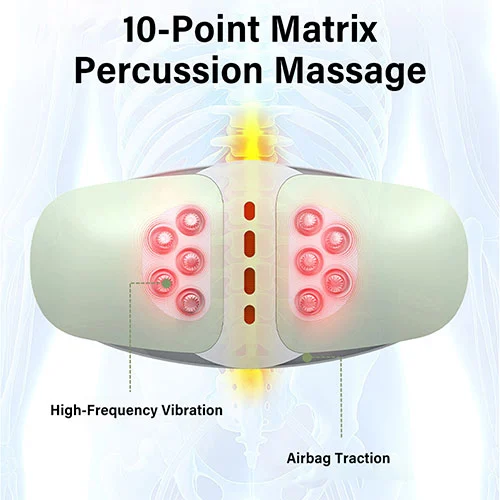

10-Point Vibration Massage

The massage section uses a 10-point vibration structure to distribute mechanical movement across the lower-back contact area.

The three vibration intensity levels allow users to select a lighter or stronger setting. The multiple contact points help spread the vibration across a larger area instead of concentrating movement at a single location.

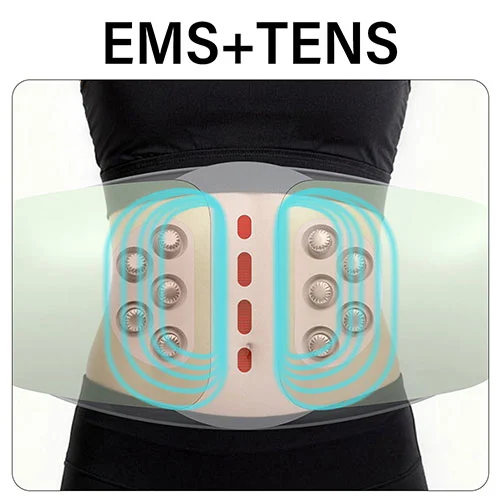

EMS and TENS Electrical Stimulation

The XB-812A integrates EMS/TENS electrical stimulation as part of its massage system.

EMS uses controlled electrical impulses to stimulate muscles, while TENS-type stimulation is generally used to provide sensory electrical stimulation. The actual waveform, frequency and output parameters should be defined in the product specification and verified through electrical testing.

The device provides 12 adjustable EMS intensity levels, allowing the user to increase the output gradually.

Three-Level Heat and 640 nm Red Light

The heating system provides three preset temperature levels:

38°C → 40°C → 42°C

The heating element warms the contact area during operation. The 640 nm red-light module provides an additional light-based function and can be operated according to the selected program.

The heating temperature should be verified during production to ensure that the actual surface temperature remains within the specified range.

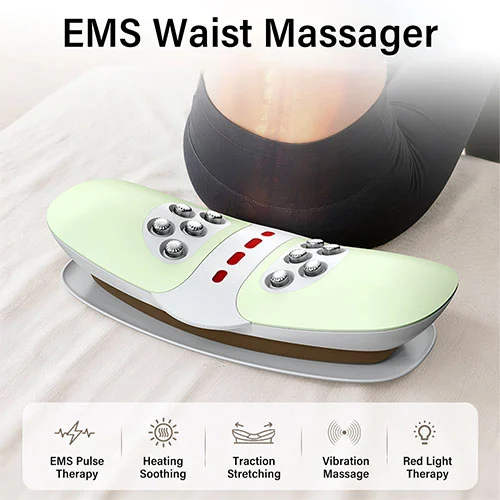

Designed for Lying-Down Use

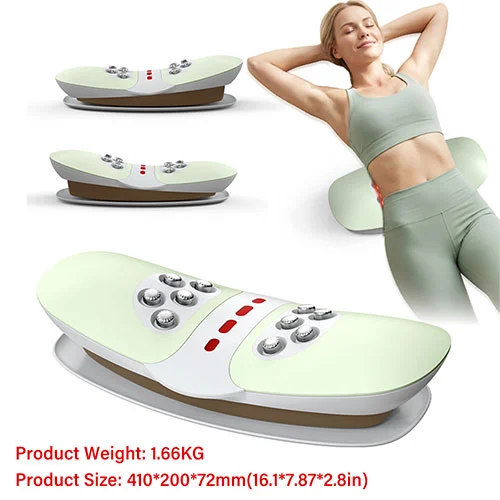

The flat 410 × 200 × 72 mm structure can be placed on a firm, level surface such as a bed or exercise mat.

When lying on the device, the lower back is positioned around the central massage area. The shape is designed to provide support while the airbag, vibration, EMS and heating functions operate.

The device weighs approximately 1.66 kg, allowing it to be moved and stored without requiring permanent installation.

Technical Specifications

Housing and Material Options

The standard design combines mint green with gray. Other housing colors can be developed for OEM projects.

The main housing uses engineering ABS with a matte surface treatment. The contact and electrode areas can use a metallic-finish material according to the selected product configuration.

For private-label projects, color, surface finish and logo placement can be adjusted to match the customer's packaging and brand requirements.

Suitable Applications

Daily Lower-Back Relaxation

The device can be used as part of a home relaxation routine after sitting, standing or performing everyday activities for extended periods.

Office Breaks

Its lying-down format is more suitable for use during dedicated rest periods rather than while working at a desk. A short session can be incorporated into a personal relaxation routine.

Home Fitness Recovery

The vibration and heat functions can be used as part of a post-exercise relaxation routine for the lower-back area.

Personal Wellness Products

The combination of EMS, traction, vibration and heat gives distributors several functions to present within one product rather than selling a basic single-function massage device.

Important: Users with spinal disorders, implanted electronic medical devices, pregnancy or other conditions affected by electrical stimulation or traction should consult a qualified healthcare professional before use.

XB-812A Compared with a Basic Back Massager

OEM and ODM Development

XB-812A can be supplied as a private-label product for fitness, wellness and personal-care brands.

Logo placement can be customized on the housing or controller. The packaging can be adapted for Amazon, eBay and other retail channels, including customized inserts and multilingual manuals.

Product configurations can also be discussed for battery capacity, operating programs, controller language and selected functions.

The normal development process is:

Requirement confirmation → Product configuration → Appearance and logo confirmation → Sample production → Functional testing → Packaging confirmation → Mass production → Pre-shipment inspection

Production Process

The main production process includes housing injection molding, airbag assembly and airtightness testing, EMS electrode and PCB assembly, controller integration, full-load aging and final packaging.

Housing molding → Airbag airtightness test → EMS electrode and PCB assembly → Controller and mainboard integration → 4-hour full-load pressure and aging test → Final inspection → Packaging

Airbag sealing and electrical output are important inspection points because they directly affect traction performance and EMS operation.

Quality Control

Each unit is subjected to a 150 kg static load test to check the structural stability of the device when used in a lying position.

The EMS output is checked with an oscilloscope during production. The electrical waveform and output parameters are verified against the approved specification, with the stated target tolerance controlled within ±2%.

The complete unit also undergoes a 4-hour load and aging test before shipment.

Compliance and Testing Documents

Depending on the final configuration and destination market, available compliance documentation includes CE, RoHS, FCC and REACH.

For rechargeable lithium-battery versions, supporting documents such as MSDS and UN38.3 can be provided according to the battery configuration and transportation requirements.

Additional product safety and electrical test reports can be supplied when required by the customer's target market.

Customer Project

8,000 Units for an Israeli Physiotherapy Clinic Group

XINGBU supplied 8,000 customized units to an Israeli physiotherapy clinic group under a customer-specific product series.

The customer selected the airbag traction function together with EMS, vibration and heat functions for its home-use product configuration.

For publication on a commercial website, customer names, satisfaction scores and after-sales data should be supported by customer authorization or documented project records.

Packaging and Shipping

The standard package includes:

- 1 × EMS Waist Traction Massager
- 1 × Wired Control Handle
- 1 × Type-C Charging Cable
- 1 × User Manual

The product has a relatively flat structure, which helps simplify retail packaging and carton arrangement.

A 40HQ container can load approximately 3,500 units, depending on the final retail box, master carton and accessory configuration. Final loading quantity should be confirmed using the approved packing specification.

How to Use the XB-812A

Position the Device

Place the massager on a firm, level surface such as a bed or exercise mat. Lie down and position the lower back over the central massage area.

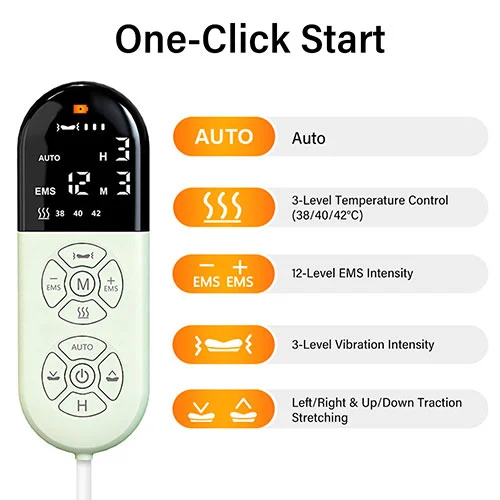

Start the Device

Press and hold the Power button on the controller to start the device.

Select Traction

Use the Traction control to select the available airbag movement mode. Begin with the lowest setting and allow the body to adapt before increasing intensity.

Adjust EMS

Use the EMS controls to select a suitable intensity. Increase the level gradually rather than starting directly at a high setting.

Add Heat or Vibration

Select the heating and vibration functions according to personal preference. Stop using the device if the stimulation becomes uncomfortable.

Frequently Asked Questions

Is it normal for the lower back to be lifted during use?

A: Yes. The lifting sensation can occur when the airbag traction function inflates and raises the support area. Start with a low setting and stop if the movement causes pain or discomfort.

Can users weighing more than 100 kg use the product?

A: The structure is tested with a 150 kg static load, but the maximum recommended user weight should follow the final product specification and safety assessment.

Can EMS and heat be used at the same time?

A: This depends on the selected operating program and final product configuration. The available functions should be confirmed in the user manual.

How many EMS intensity levels are available?

A: The standard configuration provides 12 EMS intensity levels.

How many heating levels are available?

A: There are three heating settings: approximately 38°C, 40°C and 42°C.

Does the device have vibration massage?

A: Yes. The device uses a 10-point vibration massage structure with three adjustable vibration levels.

Does it use a rechargeable battery?

A: Yes. The standard version uses a rechargeable lithium battery with Type-C charging. A plug-in version can also be developed.

Can the battery capacity be customized?

A: Battery capacity can be discussed for OEM projects, subject to the available internal space, electrical design and certification requirements.

Can the product programs be customized?

A: Yes. The automatic programs and control logic can be evaluated for OEM projects, subject to the hardware and software configuration.

Can the housing color be changed?

A: Yes. Custom colors are available for OEM orders.
