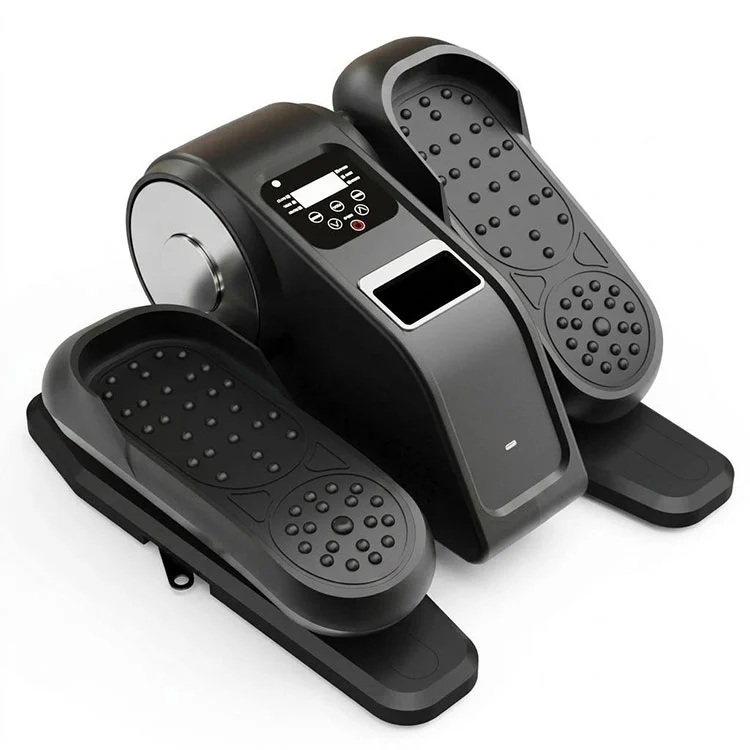

Electric Exercise Stepper Elliptical Machine

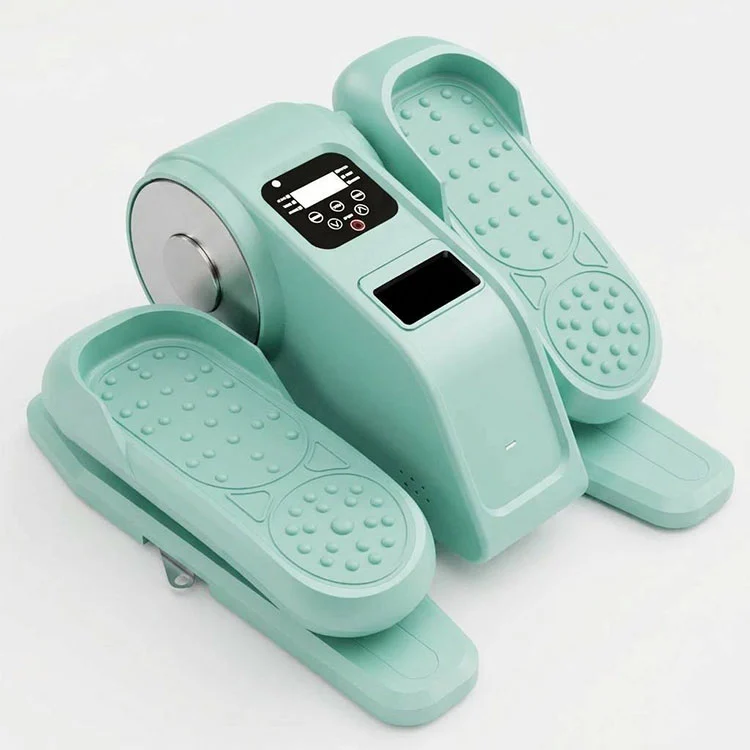

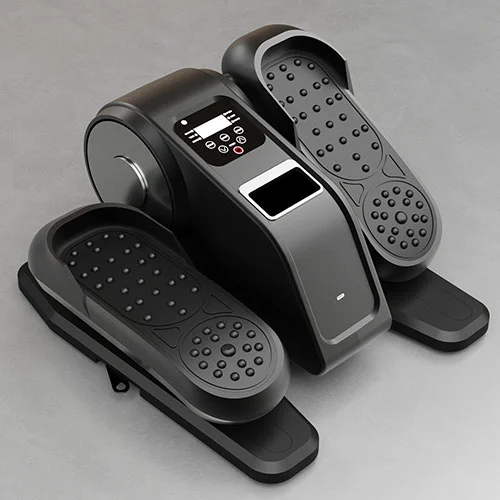

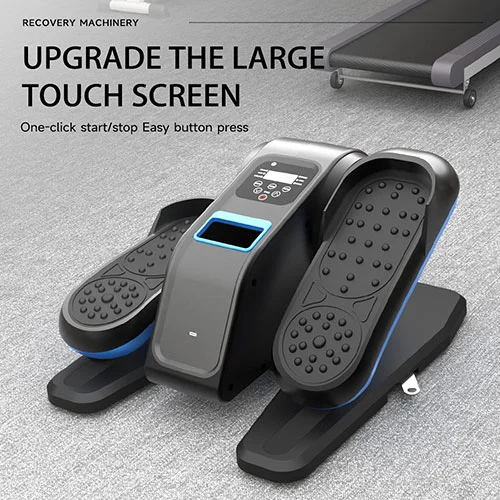

The Electric Exercise Stepper Elliptical Machine features an ergonomic, low-center-of-gravity design for quiet and stable operation. An upgraded high-definition LED touchscreen provides intuitive controls, including one-touch start and stop. The unique Passive Mode gently moves both legs to simulate walking, helping reduce muscle atrophy and promote blood circulation, while Active Mode allows users to pedal at a light intensity for everyday exercise.

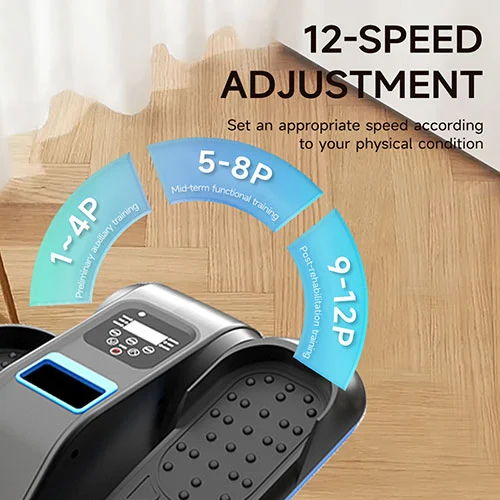

12 Speed Levels and Forward/Reverse Pedaling

The XB503 Electric Exercise Stepper Elliptical Machine provides 12 speed levels, allowing users to increase or decrease movement intensity gradually instead of relying on a few coarse settings. Lower levels are suitable for beginners and gentle exercise, while higher levels can be selected as the user becomes more accustomed to the movement.

The pedal direction can also be switched between forward and reverse rotation. Changing direction alters the movement pattern and muscle engagement, giving users more flexibility in daily lower-body exercise.

For rehabilitation-related applications, speed and exercise duration should be selected according to the user's physical condition and, where appropriate, the advice of a qualified healthcare professional.

Designed for Seated Exercise

With a compact footprint of approximately 45 × 38 × 25 cm, the XB503 can be positioned under a desk, in front of a sofa, or beside a chair. Its low center of gravity helps keep the machine stable during operation, while the integrated carrying handle makes it easier to move between rooms or store after use.

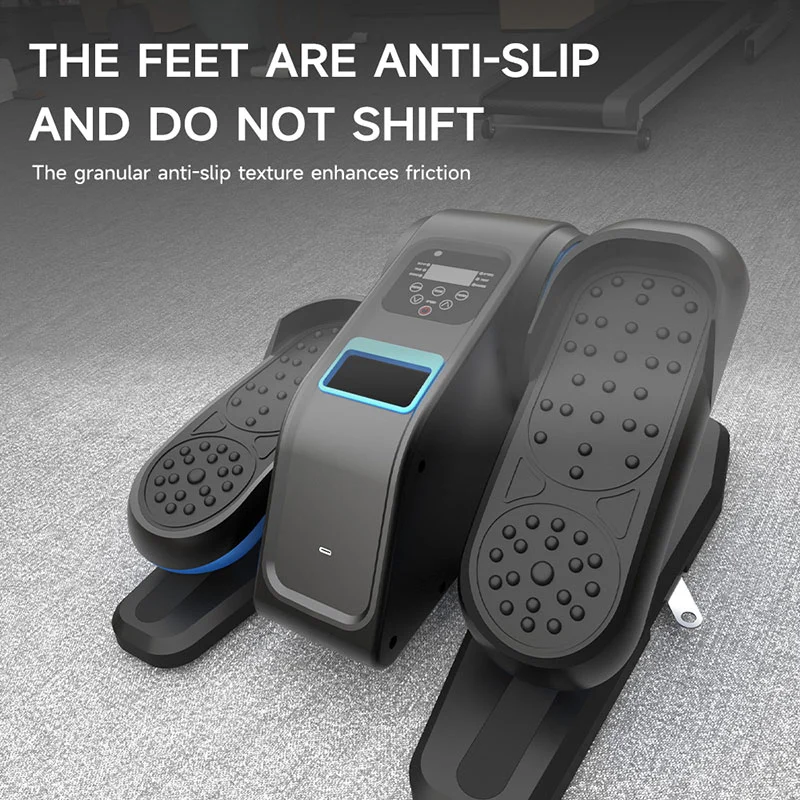

The large pedal surfaces feature a textured anti-slip pattern to help keep the feet positioned during repeated movement. The TPE pedal surface also provides a softer contact area for users who prefer exercising without shoes.

Key Features

12 Speed Levels

Twelve adjustable speed levels provide finer control over exercise intensity and allow users to progress gradually.

Passive Motor-Assisted Mode

The DC geared motor drives the pedal mechanism, providing assisted elliptical movement when the user does not want to continuously generate the required pedaling force.

Active Pedaling Mode

Users can actively pedal the machine for light lower-body exercise and everyday movement.

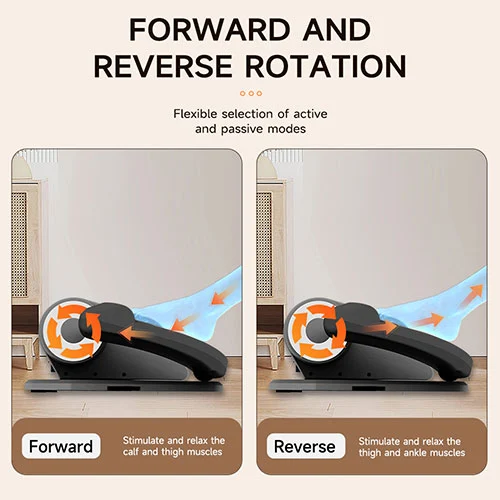

Forward and Reverse Rotation

Switching between forward and reverse directions provides different movement patterns and adds flexibility to exercise routines.

Large Anti-Slip Pedals

The wide pedal area and textured surface help reduce foot movement during repeated pedaling.

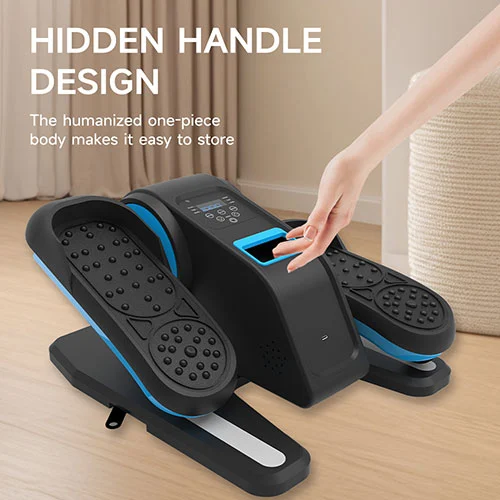

Hidden Carrying Handle

The integrated recessed handle makes the compact machine easier to lift, move, and store.

Low-Profile Structure

The approximately 25 cm overall height makes the unit suitable for placement under many desks and in front of common sofas and chairs.

Product Specifications

Applications

Under-Desk Exercise

The compact design allows the XB503 to be used while seated at a desk. It is suitable for users who want to add regular leg movement to a sedentary work routine.

Home and Senior Fitness

The seated operating position and adjustable speed make the product suitable for low-impact home exercise. Users can start at a lower speed and adjust according to their comfort and physical condition.

Assisted Lower-Body Movement

Passive mode provides motor-assisted pedal movement for users who require assistance during seated exercise. For post-operative or rehabilitation use, exercise should only be performed when appropriate for the user's condition and according to professional guidance.

Materials and Surface Finish

The main housing uses matte-finish ABS, providing a practical balance between appearance, impact resistance, and easy cleaning. The pedals use TPE anti-slip material to improve foot contact and reduce slipping during repeated movement.

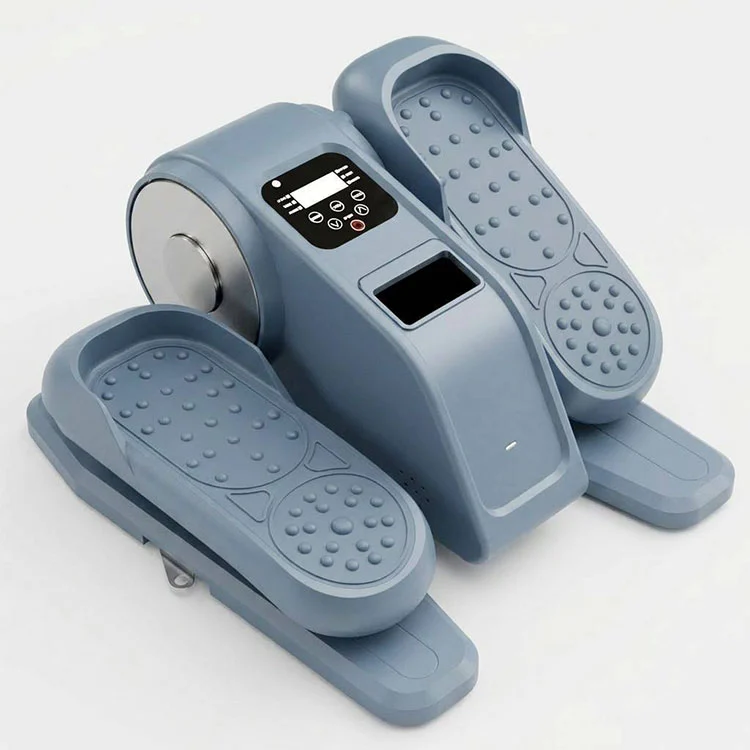

The standard color combination is titanium gray with technology blue. OEM buyers can request customized housing colors according to their brand identity or target market.

Motor and Motion System

The XB503 Electric Exercise Stepper Elliptical Machine uses a quiet DC geared motor controlled by an electronic speed-control system. In passive mode, the motor transfers torque to the crank and linkage mechanism, which converts motor rotation into the elliptical movement of the pedals.

The control system allows the user to adjust the operating speed through 12 levels. Forward and reverse operation can be selected according to the intended exercise routine.

The design focuses on controlled, repeatable pedal movement rather than high-impact standing exercise. The machine is intended for seated use and should not be used while standing on the pedals.

User Guide

1. Place the machine on a stable, level surface in front of a chair or under a desk.

2. Sit securely on the chair and place both feet fully on the pedals.

3. Keep the heels positioned against the pedal stops where applicable.

4. Press the Power button on the touchscreen.

5. Start from a low speed and increase gradually according to comfort.

6. Use forward or reverse mode as required.

7. Stop the machine before removing your feet from the pedals.

Important: The XB503 is designed for seated exercise. Do not stand on the pedals or use the machine as a standing stepper.

Project Case

U.S. Rehabilitation Equipment E-Commerce Brand

We have supplied this smart electric rehabilitation elliptical trainer to a well-known U.S. rehabilitation equipment e-commerce brand on a long-term basis.

According to customer feedback, the product's low-center-of-gravity stability and 12-level speed adjustment are key factors supporting its strong market performance. The product has maintained a high position in the customer's physical therapist recommendation rankings, while repeat orders have continued to grow steadily.

XB503 vs. Conventional Mini Steppers

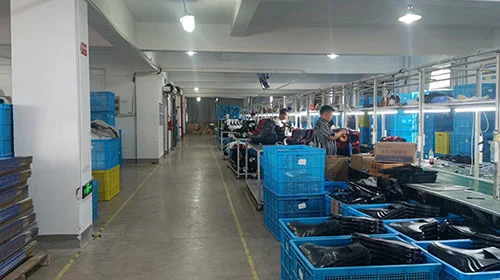

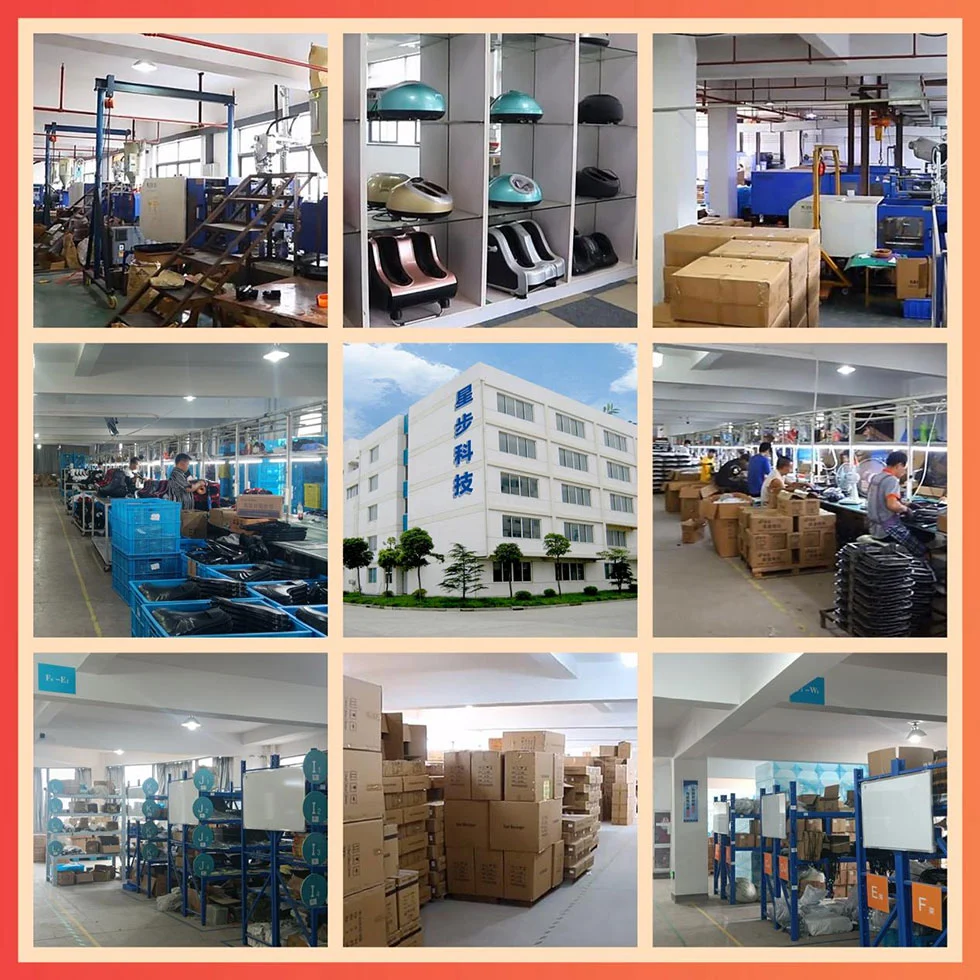

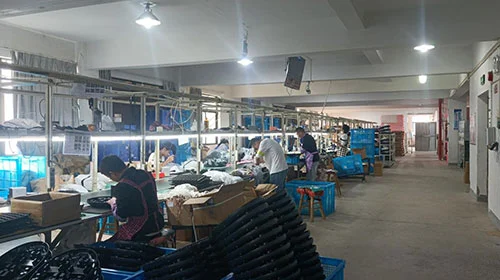

Manufacturing and Quality Control

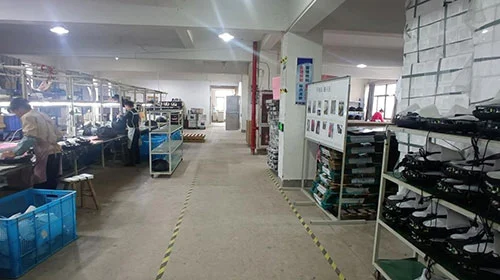

Electric Exercise Stepper Elliptical Machine production covers mechanical assembly, motor and transmission installation, electronic control integration, display installation, functional testing, aging testing, and final packaging.

The production process includes:

Frame assembly → Motor and transmission installation → Drive system adjustment → LED touchscreen integration → Load aging test → Functional inspection → Packaging

Each unit is subjected to functional and operating checks before shipment. According to the supplied production specification, the product undergoes a 4-hour aging test under a simulated 50 kg load, while the belt transmission system is tested through 100,000 rotation cycles.

The supplied quality standard also specifies a noise target below 40 dB during full-load operation, which should be verified against the actual production test report for each production batch.

OEM and ODM Services

The XB503 can be adapted for private-label and regional-market projects. Available customization includes:

- Logo placement and housing branding

- Customized startup screen and display interface

- Control-panel language localization

- Housing color matching

- Packaging and labeling

- Wireless remote configuration

- Bluetooth/App functions subject to project requirements

- Functional and appearance inspection based on customer standards

For new projects, the normal workflow is requirement confirmation → design/sample approval → prototype production → testing → mass production → pre-shipment inspection.

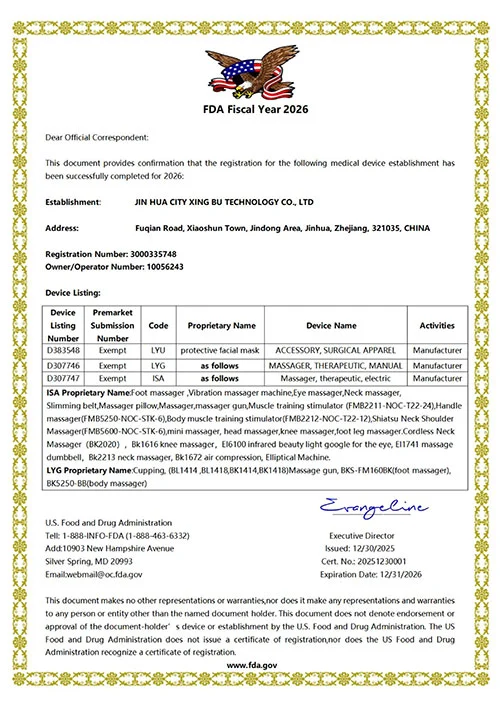

Product Certifications

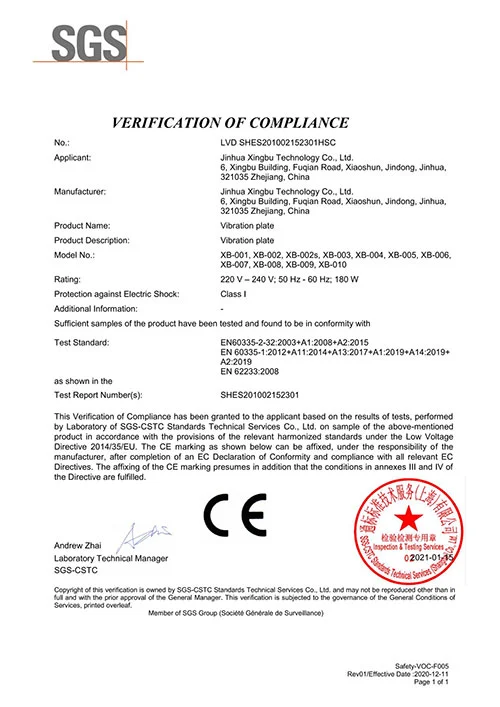

General Compliance: CE (LVD/EMC), RoHS, REACH, FCC and other applicable certifications are available.

Medical Market Access: Designed to meet the filing requirements for certain regions where home-use Class II medical rehabilitation equipment is applicable.

Packaging and Shipping

For export orders, the XB503 Electric Exercise Stepper Elliptical Machine can be packed with molded EPS protection and a reinforced K=K grade corrugated export carton to reduce the risk of impact damage during handling and transportation.

The machine is primarily adapter-powered and does not require a large built-in battery, which can simplify shipping arrangements compared with battery-powered fitness equipment. Final packing specifications and shipping requirements should be confirmed according to the destination market and order configuration.

Why Choose XB503

For buyers looking for a compact electric pedal exerciser, the XB503 focuses on the features that directly affect everyday usability: 12-level speed control, motor-assisted passive movement, active pedaling, forward/reverse operation, a low-profile structure, large anti-slip pedals, and easy handling.

Jinhua Xingbu Technology Co., Ltd. develops and manufactures massage, fitness, and health-related equipment and supports OEM/ODM projects from product development through production and packaging. For private-label buyers, the XB503 can be adapted in appearance, interface, packaging, and selected functions to fit different sales channels.

FAQ

Can the XB503 Electric Exercise Stepper Elliptical Machine be used under a desk?

A: Yes. Its approximately 45 × 38 × 25 cm footprint is designed for compact seated use and can be positioned under many desks, provided there is sufficient leg clearance.

Does the machine support both active and passive exercise?

A: Yes. Passive mode uses the motor to drive the pedals, while active mode allows the user to pedal using their own leg strength.

Can the rotation direction be changed?

A: Yes. The XB503 supports both forward and reverse operation.

How many speed levels are available?

A: There are 12 speed levels, allowing more gradual adjustment than basic models with only a few settings.

Will the machine move during operation?

A: The low center of gravity, anti-slip feet, and wide pedal design are intended to improve stability during seated operation. Actual stability also depends on the floor surface and user weight.

Can it be supplied for 110V and 220V markets?

A: Yes. Power-adapter and plug configurations can be selected according to the destination market. The exact input/output specifications should be confirmed before ordering.

Is a wireless remote control available?

A: Yes. A wireless remote control can be supplied as an optional configuration.

Can the product be customized with a private label?

A: Yes. OEM/ODM options include logo, housing color, startup screen, interface language, packaging, labeling, and selected functional configurations.

How long should each exercise session last?

A: For general fitness, users can start with short sessions at a comfortable speed and gradually increase duration. There is no single duration suitable for every user. For rehabilitation or post-operative use, follow the exercise plan recommended by a qualified professional.

Is the XB503 a medical rehabilitation device?

A: The product can be positioned for assisted exercise and rehabilitation-related applications, but buyers should not assume medical-device status from general compliance certificates. Whether it is legally classified as a medical device depends on the target market, intended use, claims, and local regulations.

Purchasing Information

For wholesale, private-label, and OEM/ODM projects, buyers can confirm the following specifications before quotation:

- Required speed range and control configuration

- Touchscreen and wireless remote requirements

- Target-market voltage and plug

- Housing color and logo

- Packaging and carton requirements

- Required compliance documents

- Bluetooth/App or other customized functions

- Order quantity and delivery schedule
